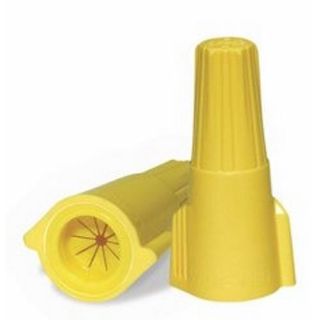

Actual Product May Vary From Image

30-360Y IDE

Name: 30-360Y IDE
Brand: Ideal Industries
SKU: 30-360Y IDE
Availability: OutOfStock

IDEAL® MUDBUG® 30-360Y 60® Series Utility Wire Connector, Twist-On Shell, Live Action/Square Wire Spring, 20 to 10 AWG Solid/Stranded Copper Wire, Polypropylene

Manufacturer: Ideal Industries

Manufacturer part number: 30-360Y

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

IDEAL®

Description

UnderGround™ Wire Connectors make fast, secure, and long lasting connections. The tough, thermoplastic shell provides extra protection against accidental impacts and the deep skirt provides superior moisture resistance, making these connectors UL Listed to 486D for use in damp, wet or direct burial, below-grade applications. Yellow MUDBUG® Utility Wire Connectors off the same moisture and corrosion resistant properties as the UnderGround™ connectors but are designed for utility tracer line applications.

IDEAL® MUDBUG® Utility Wire Connector, Series: 60®, Twist-On Shell Style, Live Action/Square Wire Spring, Solid/Stranded Copper Wire, 20 to 10 AWG Wire, 600 VAC, Specifications: 1/2 in Wire Strip, 1 to 6 Conductors, Min 20 to 1 AWG with 18 to 1 AWG, Max 10 to 1 AWG and 12 to 2 AWG Combination Size, 221 deg F, Polypropylene, Yellow, 0.65 in Dia x 1.68 in L

Application

Ejection Pumps, Low-Voltage Landscape Lighting, Lawn-Sprinkler Control Systems, Sump, Well Pump Installations, Valve Control Boxes and Utility Tracer Line Applications

Standards

RoHS Compliant | C22.2 No. 188 | UL94 V-2 Flammability Rating | UL 486C/486D Listed

Features

Connects underground gas tracer lines with excellent moisture protection
100% silicone-based sealant protects against moisture and corrosion
Easy to apply, pre-filled twist on wire connectors saves time and improves productivity
Expanding, live-action square wire spring for fast, secure and long lasting connections
Deep skirt provides superior moisture resistance to protect connections
For tough environmental conditions
Non hardening sealant completely seals out moisture to protect against fungus and corrosion

Specifications

Color:	Yellow
Country of Origin:	US
Dimensions:	0.65 in Dia x 1.68 in L
Material:	Polypropylene
Series:	60®
Shell Style:	Twist-On
Specifications:	1/2 in Wire Strip, 1 to 6 Conductors, Min 20 to 1 AWG with 18 to 1 AWG, Max 10 to 1 AWG and 12 to 2 AWG Combination Size
Spring Type:	Live Action/Square Wire
Temperature Rating:	221 deg F
Voltage Rating:	600 VAC
Wire Size:	20 to 10 AWG
Wire Type:	Solid/Stranded Copper
