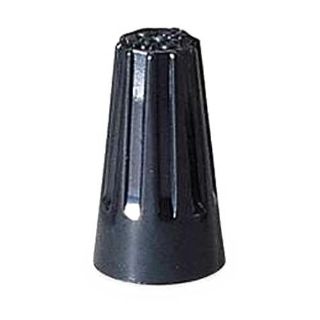

Actual Product May Vary From Image

30-3628 IDE

Name: 30-3628 IDE
Brand: Ideal Industries
SKU: 30-3628 IDE
Price: 0.23 USD
Availability: OutOfStock

IDEAL® WIRE-NUT® 30-3628 74B® High Temperature Wire Connector, Twist-On Shell, Fixed/Square Wire Spring, 22 to 14 AWG Solid/Stranded Copper Wire, Thermoplastic Polyester

Manufacturer: Ideal Industries

Manufacturer part number: 30-3628

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$0.23

Qty:

Product Details

Brand Name

IDEAL®

Type

High Temperature

Alternate Supplier #

Grainger - 6VG16

Description

WIRE-NUT® is perfect to twist-on with fingers for a secure connection that will last. The refined wire range makes it the best choice for fine stranded wire applications. The WIRE-NUT® also features a tough, flame-retardant thermoplastic shell that withstands environmental extremes and is reusable for easy circuit changes and addition.

IDEAL® WIRE-NUT® Wire Connector, High Temperature, Series: 74B®, Twist-On Shell Style, Fixed/Square Wire Spring, Solid/Stranded Copper Wire, 22 to 14 AWG Wire, 300 VAC, Specifications: 1/2 in Solid, 3/8 in Stranded Wrip Strip, 1 to 5 Conductors, Min 22 to 2 AWG, Max 16 to 3 AWG Combination Size, 302 deg F, Thermoplastic Polyester, Black, 45/64 in H x 25/64 in W Dimensions

Application

For insulating or joining two or more conductors in conditions where extreme heat build-up occurs such as high wattage fixtures and signs

Standards

RoHS Compliant | C22.2 No. 188 | Federal Specification W-S-610E | UL 94V-0 Flammability Rating | UL 486C Listed

Features

Welded one-piece spring/shell for added reliability
Black, thermoplastic shell specially designed to withstand the extreme heat build-up commonly found in high-wattage light fixtures and signs
Fixed, square wire spring creates its own threads-maintains a secure positive grip that will not relax over time
No pre twisting required, positive grip design provides fast, easy installation
Deep skirt helps protect against flash-over
Reusable for easy circuit changes and additions
For tough environmental conditions

Specifications

Color:	Black
Country of Origin:	US
Dimensions:	45/64 in H x 25/64 in W
Material:	Thermoplastic Polyester
Series:	74B®
Shell Style:	Twist-On
Specifications:	1/2 in Solid, 3/8 in Stranded Wrip Strip, 1 to 5 Conductors, Min 22 to 2 AWG, Max 16 to 3 AWG Combination Size
Spring Type:	Fixed/Square Wire
Temperature Rating:	302 deg F
Voltage Rating:	300 VAC
Wire Size:	22 to 14 AWG
Wire Type:	Solid/Stranded Copper
