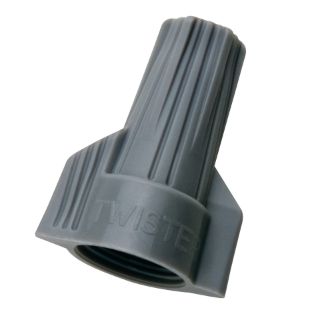

Actual Product May Vary From Image

30-642 IDE

Name: 30-642 IDE
Brand: Ideal Industries
SKU: 30-642 IDE
Price: 0.43 USD
Availability: OutOfStock

IDEAL® TWISTER® 30-642 342® Flame-Retardant Wire Connector, Ribbed/Swept Wing/Twist On Shell, Live Action/Square Wire Spring, 18 to 6 AWG Solid/Stranded Copper Wire, Polypropylene

Manufacturer: Ideal Industries

Manufacturer part number: 30-642

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$0.43

Qty:

Product Details

Brand Name

IDEAL®

Type

Flame-Retardant

Alternate Supplier #

Grainger - 24Z633

Description

TWISTER® wire connectors have earned a solid reputation as the most technically advanced wire connector available. These superior wire connectors are designed from top to bottom with features to provide more comfort and less fatigue to professional electricians. With swept wings and an expanding, live action spring, the TWISTER® supports a wide range of common wiring configurations with comfort and ease, even on the toughest combinations like solid-to-stranded. The copolymer shell expands for smooth, progressive tightening ensuring dependable connections.

IDEAL® TWISTER® Wire Connector, Flame-Retardant, Series: 342®, Ribbed/Swept Wing/Twist On Shell Style, Live Action/Square Wire Spring, Solid/Stranded Copper Wire, 18 to 6 AWG Wire, 600 VAC, Specifications: 5/8 in Wire Strip, 1 to 6 Conductors, 14 to 3 AWG Minimum, 8 to 2 AWG with 12 to 2 AWG Maximum Conductor Combination Size, 221 deg F, Polypropylene, Gray, 0.66 in Dia x 1 in W x 1.31 in H Dimensions

Application

For insulating or joining one or more conductor, lighting installation and retrofit

Standards

Features

Exceptional wire range capacity, three models handle wire combinations from as small as 22 AWG to as large as 6 AWG
Swept wings offer more comfort, extra leverage and less effort for large wire combinations
Expanding square wire spring supports a wide range of common wiring configurations
Durable co-polymer shell expands for smooth, progressive tightening that provides dependable connections
Hexagonal top with ribbed cap allows for quick fingertip start as well as use of standard 1/4 in nutdriver for fast installation
Quick take up on even the toughest combinations and including solid to stranded
1000 V maximum in fixtures and signs
Ribbed cap provides a secure grip and fast fingertip starts
Live action, square wire spring locks onto wire for safe and secure connections
Deep skirt helps protect against flash over and turned back strands for maximum dielectric protection

Specifications

Color:	Gray
Country of Origin:	US
Dimensions:	0.66 in Dia x 1 in W x 1.31 in H
Material:	Polypropylene
Series:	342®
Shell Style:	Ribbed/Swept Wing/Twist On
Specifications:	5/8 in Wire Strip, 1 to 6 Conductors, 14 to 3 AWG Minimum, 8 to 2 AWG with 12 to 2 AWG Maximum Conductor Combination Size
Spring Type:	Live Action/Square Wire
Temperature Rating:	221 deg F
Voltage Rating:	600 VAC
Wire Size:	18 to 6 AWG
Wire Type:	Solid/Stranded Copper
