Actual Product May Vary From Image

300XL037 GAT

Name: 300XL037 GAT
Brand: Gates
SKU: 300XL037 GAT
Price: 12.66 USD
Availability: OutOfStock

PowerGrip® Timing Belts

Manufacturer: Gates

Manufacturer part number: 9257-1324

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$12.66

Qty:

Product Details

Brand Name

Gates®

Type

Extra Light

Description

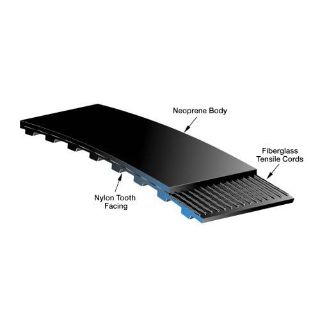

Gates® classical synchronous PowerGrip® Timing belts o?er a maintenance-free, economical, and OE-quality solution for your conventional timing drives such as chains and gears. Its application range extends from minimum drives (computer printers) to heavy-duty machinery (oil pumps, etc). The trapezoidal tooth profile makes this belt well suited for use in positioning applications.

Application

Office Machines, Machine Tools, Postage Equipment, Sewing Machines, Vending Machines, Agriculture, Outdoor Power Equipment, Food Processing, HVAC, Oil Fields, Wood, Paper, Sand and Gravel Applications

Standards

RMA Standard

Features

Fiberglass tensile cord provides high strength, excellent flex life and high resistance to elongation
Nylon tooth facing provides a durable wear surface for long service life
Eliminates lubrication and re-tensioning to reduce maintenance and labor required on drives
Neoprene body provides protection against grime, grease, oil and moisture
The trapezoidal tooth profile makes this belt well suited for use in positioning applications

Specifications

Material:	Neoprene
Minimum Pulley Diameter:	0.62 in
Number of Teeth:	150
Overall Length:	30 in
Pitch:	0.2 in
Reinforced Material:	Fiberglass
Series:	9257
Temperature Range:	-30 to 180 deg F
Width:	3/8 in
