301000A01F200 WOO

Brad® Mini-Change® connectors are the standard by which all miniature connectors are measured. First introduced in 1968, the Mini-Change® connector pioneered the market for rugged, sealed connectors in industrial applications. These connectors provided the first quick-connect alternative to hard-wiring. Mini-Change® connectors are available in a wide variety of circuits and configurations, with pole configurations available in 2 through 12, 14 and 19. With Mini-Change® connectors, industrial device wiring is easier to install and maintain. To ensure a consistent, low resistance connection, the patented Quad-Beam™ female contact is used. Connectors are sealed to provide IP67 protection. An anti-vibration feature prevents the coupler from loosening, even under extreme conditions.

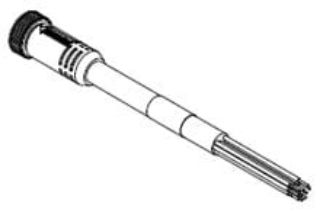

Brad® Mini-Change® Woodhead® Cordset, A-Size/B-Size/C-Size Single Ended, Series: 130008, Straight Female x Pigtail Connector, 1-1/4 in Connector, PVC Connector, 16 AWG STOOW Cable, 6.1 m Cable Length, PVC Cable, 10 Pole, Single Keyway, 600 VAC/VDC, 7 A, Orange/Blue/White/Black Trace/Red/Black Trace/Green/Black Trace/Orange/Black Trace/Red/Green/Yellow/Black/White Wire Pin, NEMA 6P NEMA Rating
