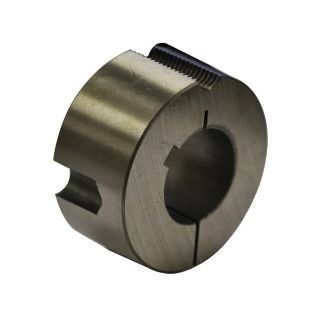

Actual Product May Vary From Image

3020-1C UST

Name: 3020-1C UST
Brand: US Tsubaki
SKU: 3020-1C UST
Availability: OutOfStock

Tsubaki® 3020-1C Type 3020 Taper-Lock® Bushing, 1-3/16 in Dia Bore, 4-1/4 in Dia Barrel, 2 in OAL, Steel

Manufacturer: US Tsubaki

Manufacturer part number: 3020-1C

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Tsubaki®

Type

Type 3020

Description

Tsubaki® Taper-Lock® Bushing, Type 3020, 1-3/16 in Bore Dia, 4-1/4 in Barrel Dia, 8 deg Taper, 4 in Bolt Circle, 2 Bolt Holes, 5/8 x 1-1/4 in Screw, 24000 in-lb, For Use With: Sprockets 101, 2 in Overall Length, 1/4 in W x 1/8 in H Keyway, Steel

Standards

ANSI Specified

Features

Standard keyway in hub

Specifications

Barrel Diameter:	4-1/4 in
Bolt Circle Diameter:	4 in
Bore Diameter:	1-3/16 in
Country of Origin:	CN
Keyway Size:	1/4 in W x 1/8 in H
Material:	Steel
Number of Bolt Holes:	2
Overall Length:	2 in
Screw Size:	5/8 x 1-1/4 in
Suitable For Use With:	Sprockets 101
Taper:	8 deg
Torque Rating:	24000 in-lb
