302GC-024 FSG

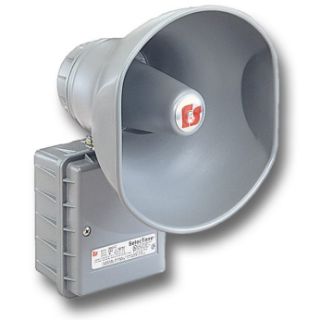

Federal Signal SelecTone® 302GC-024 Compact Lightweight Audible Signaling Device, 24 VAC/VDC, 1/1.4 A, 50/60 Hz, 114 dB Sound, CSFM Approved, cUL Listed, UL 1480
Manufacturer: Federal Signal
Manufacturer part number: 302GC-024
Availability: Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$2,189.66

Product Details

Brand Name

Federal Signal

Type

Compact Lightweight

Description

Federal Signal's model 302GC SelecTone® amplified speaker is designed to produce crisp, clear tones, digital voice messages and live public address in harsh environments with high ambient noise levels. The rugged speaker cone and projector are constructed of spun aluminum. The internal circuitry, tone module and gain control are contained in a housing constructed of die-cast aluminum. All surfaces are sealed with powder-coat paint. Dust- and moisture-proof gaskets provide protection from the elements. SelecTone® amplified speakers are used individually or as part of a plant wide emergency notification system. The model UTM Universal™ tone module, with 32 tones or the TM33 custom tone module is plugged into a single SelecTone® amplified speaker for stand-alone use or into a SelecTone® command unit for plant wide signaling. For plant wide signaling, a connector kit is installed into each SelecTone® amplified speaker and wired to a central controller. SelecTone® command units and CommCenter® digital message centers broadcast tones, voice messages, melodies and live public address to an unlimited number of SelecTone® amplified speakers. Typical applications for SelecTone® include emergency warning, plant evacuation, start-and dismissal, public address and process control signaling.
Federal Signal SelecTone® Audible Signaling Device, Compact Lightweight, Series: 302GC, 24 VAC/VDC, 1/1.4 A Power Source, 50/60 Hz Frequency Response, 114 dB Sound Level, Specifications Met: CSFM Approved, cUL Listed, UL 1480, Surface Mounting, Specifications: -67 to 150 deg F, Die Cast Aluminum, Gray, 10.2 in W x 9.9 in D x 13.9 in H Dimensions

Application

Emergency Warning, Plant Evacuation, Start and Dismissal, Public Address Process Control Signaling and Indoor/Outdoor

Standards

BAA Compliant | CSA Certified | UL 486 Class 1 MS15036-134

Features

  • Built-in gain control, adjustable between 0 dBA to 114 dBA at 10 ft (100 dBA to 124 dBA at 1 m)
  • NEMA 3R, IP54 enclosure
  • Digital signal amplification
  • Fused input and output

Specifications

Color:Gray
Country of Origin:US
Dimensions:10.2 in W x 9.9 in D x 13.9 in H
Frequency Response:50/60 Hz
Material:Die Cast Aluminum
Mounting Type:Surface
Power Source:24 VAC/VDC, 1/1.4 A
Series:302GC
Sound Level:114 dB
Specifications:-67 to 150 deg F
Specifications Met:CSFM Approved, cUL Listed, UL 1480
