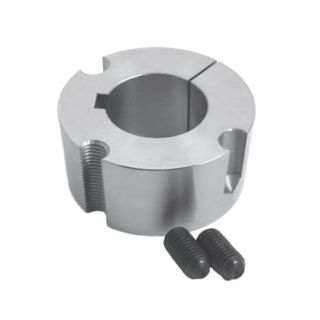

3030 X 2 9/16 BLT

TRITAN® Taper Lock "TL" Bushings provide a solution for flush mounting that maintains a narrow length-through-bore, allowing mounting close to bearings and preventing issue with overhung loads. These bushings are split with a gradual taper to provide a secure fit on the shaft equal to that of a shrink or press fit. Cap screws are included for both installation and bushing removal.

TRITAN® Taper Lock Bushing, Series: 3030, 2-9/16 in Bore, 4 in Diameter Bolt Circle, 5/8 x 1-1/4 in Screw, 24000 in-lb Torque, For Use With: Sheaves and Sprocket, 3 in Overall Length, 5/8 x 5/16 in Keyway, 1045 Steel
