30306T FER

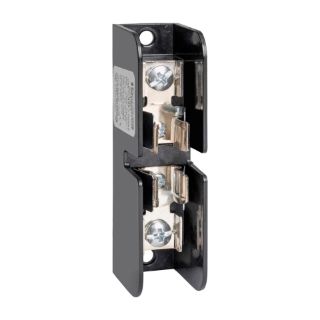

Mersen 30306T Open Style Fuse Block, 300 VAC/160 VDC, 30 A, Class: T, 14 to 2 AWG Wire, 1 Poles
Manufacturer: Mersen
Manufacturer part number: 30306T
Availability: Expected Leadtime 30 days
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$17.70

Product Details

Brand Name

Mersen

Type

Open Style

Description

MERSEN class T fuse blocks accommodate class T fuses up to 600 A. Insulators are either durable, glass-filled polycarbonate (GFPC) or phenolic with verified dielectric strength in excess of 2500 V. MERSEN is the only manufacturer to offer class T blocks with copper connectors.
Mersen Fuse Block, Open Style, 300 VAC/160 VDC, 30 A, 1 Pole, 1 ph, Class: T, Box Connection, 14 to 2 AWG Wire, Threaded Mounting, 125 deg C, For Use With: A3T Fuse, GFPC, 3.65 in H x 0.98 in W x 1.47 in D Dimensions

Standards

RoHS Compliant | UL 4248-15 Guide IZLT File No. E52283 | UL 4248-15 Guide IZLT2 File No. E52283 Recognized | CSA C22.2 Class 6225-01 File No. 32169_0_000 | CE Certified

Features

  • Unique integral DIN rail adapters for 600 VAC, 30 and 60 A blocks
  • Full barrier design (30 and 60 A) increases pole to pole safety
  • Unique adder block design (30 and 60 A) for design flexibility
  • Spring reinforcing standard for all 30 and 60 A clips
  • Features high conductivity copper alloy fuse clips
  • Cool running high amperage (100 to 600 A) connectors

Specifications

Amperage Rating:30 A
Class:T
Connection Type:Box
Country of Origin:MX
Dimensions:3.65 in H x 0.98 in W x 1.47 in D
Material:GFPC
Mounting Type:Threaded
Number of Phases:1
Number of Poles:1
Suitable For Use With:A3T Fuse
Temperature Rating:125 deg C
Voltage Rating:300 VAC/160 VDC
Wire Size:14 to 2 AWG
