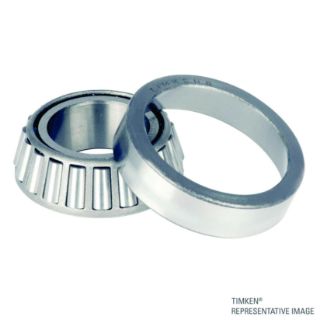

Actual Product May Vary From Image

30316M-90KM1 TKN

Name: 30316M-90KM1 TKN
Brand: Timken
SKU: 30316M-90KM1 TKN
Availability: OutOfStock

Metric Tapered Roller Bearings

Manufacturer: Timken

Manufacturer part number: 30316

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Timken

Description

Timken’s line of metric tapered roller bearings are designed to meet customer needs and offers one of the industry's broadest ranges of parts | All single-row metric tapered roller bearing components are designed according to the ISO 355 standard | Premium engineered bearings meet higher performance requirements for the most challenging applications.

Tapered Roller Bearings | Metric | 80 mm 3.1496 in Bore | 170 mm 6.6929 in OD | 42.5 mm 1.6732 in Width

Features

Reliable in extreme situations
Versatile to manage both radial and thrust loads
Enhanced performance in demanding applications
Longer bearing life

Specifications

Assembly Components:	Assembly
Assembly Number:	90KM1
Bearing Material:	Steel
Bearing Type:	Unmounted Tapered Roller Bearing
Bore Type:	Straight Bore
Cage (Retainer) Type:	Steel
Cage Material:	Steel
Component (I/R; O/R assembly):	Assembly
Dynamic Load Rating:	75200
Inner Race Width (in):	1.5354
Inner Race Width (mm):	38.99916
Load Rating UOM:	LB
Material - Rolling Elements:	Steel
Outer Diameter (in):	6.6929
Outer Diameter (mm):	170
Outer Diameter Type:	Straight OD
Outer Race Width (in):	1.2992
Outer Race Width (mm):	33
Overall Width (in):	1.6732
Overall Width (mm):	42.5
Precision class:	Class K (Standard)
Rolling Element:	Tapered Roller
Row Type:	Single
Shaft Size (in):	3.1496
Shaft Size (mm):	80
Static Load Rating:	85600
