30323R FER

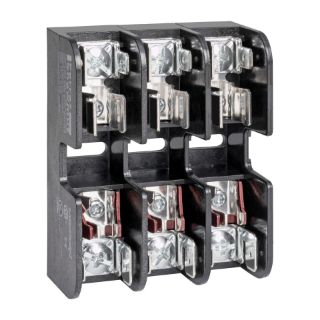

Mersen 30323R Open Style Fuse Block, 600 VAC/VDC, 30 A, 14 to 10 AWG Wire, 3 Poles
Manufacturer: Mersen
Manufacturer part number: 30323R
Availability: Expected Leadtime 15 days
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$20.47

Product Details

Brand Name

Mersen

Type

Open Style

Alternate Supplier #

Grainger - 540C83

Description

Mersen midget fuse blocks accommodate all 30 A 1-1/2 x 13/32 in midget fuses. Class CC fuse blocks accommodate all 30 A Class CC fuses. A choice of box, screw, or pressure plate connectors fit a wide range of stranded or solid copper wire. Insulators are glass filled polycarbonate (GFPC) with verified dielectric strength in excess of 2500 V. Fuse blocks feature a unique adder block which can be snapped onto 1, 2 or 3-pole blocks to form multi-pole segmented blocks of as many poles as desired. All fuse clips are made of high conductivity tin plated copper alloy.
Mersen Fuse Block, Open Style, Series: 303, 600 VAC/VDC, 30 A, 3 Pole, 3 Phase, Class: CC, Pressure Plate/Double Quick-Connect, 14 to 10 AWG Wire, DIN Rail/Threaded Mount, 1-1/2 in Fuse Length, 13/32 in Fuse Dia, 125 deg C, For Use With: ATDR, ATMR and ATQR Series Fuse, Glass Reinforced Polycarbonate, 3.04 in H x 2.35 in W x 1.31 in D

Standards

RoHS Compliant | UL 4248-4 Guide IZLT File No. E52283 | CSA C22.2 Class 6225/32169

Features

  • 20 in-lb torque rating
  • Tin-plated copper contact

Specifications

Amperage Rating:30 A
Class:CC
Connection Type:Pressure Plate/Double Quick-Connect
Country of Origin:MX
Dimensions:3.04 in H x 2.35 in W x 1.31 in D
Fuse Diameter:13/32 in
Fuse Length:1-1/2 in
Material:Glass Reinforced Polycarbonate
Mounting Type:DIN Rail/Threaded
Number of Phases:3
Number of Poles:3
Series:303
Suitable For Use With:ATDR, ATMR and ATQR Series Fuse
Temperature Rating:125 deg C
Voltage Rating:600 VAC/VDC
Wire Size:14 to 10 AWG
