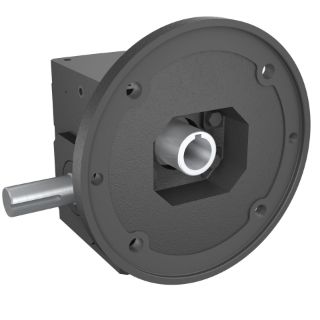

Actual Product May Vary From Image

304 30/1 B WR 182TC HUB

Name: 304 30/1 B WR 182TC HUB
SKU: 304 30/1 B WR 182TC HUB
Availability: OutOfStock

Hub City® PowerCubeX® 0230-09343 300PCX Right Angle Single Reduction Style B Worm Gear Reducer, C-Face Quill Input, Shaft Output, 3 hp Input, 30:1 Gear, 58.3 rpm Maximum Output, 2484 in-lb Output Torque Rating

Manufacturer part number: 0230-09343

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Hub City®

Type

Right Angle Single Reduction Style B

Description

Hub City® PowerCubeX® Worm Gear Reducer, Right Angle Single Reduction Style B, Series: 300PCX, 30:1 Gear Ratio, 3 hp Input, C-Face Quill Input, Shaft Output, 1-1/8 in Dia Input, 1.25 in Dia x 3.6 in L Output, 58.3 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 2484 in-lb Output, 3 in Centre Distance, 1/4 x 1/8 in Output Keyway, 76.5 % Efficiency, Conventional Oil Lubrication, Cast Iron

Application

Conveyors and Conveying Equipment, Printing Equipment, Agriculture, Food Processing, Bottling Equipment, Grain Handling, Packaging Machinery, Cement and Asphalt

Standards

AGMA Class 1

Features

Modular design
Universal mounting dimensions
Increased thermal capacity and increased efficiency
Alloy shafting
FKM seals

Specifications

Centre Distance:	3 in
Efficiency:	76.5 %
Gear Ratio:	30:1
Horsepower:	3 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	1-1/8 in Dia
Input Type:	C-Face Quill
Keyway Size:	1/4 x 1/8 in Output
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Output Maximum Speed:	58.3 rpm
Output Size:	1.25 in Dia x 3.6 in L
Output Type:	Shaft
Series:	300PCX
Torque Rating:	2484 in-lb Output
