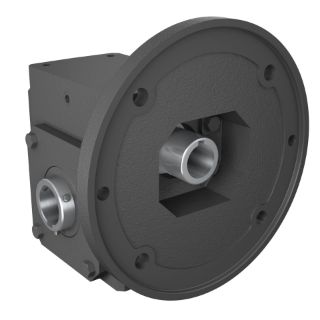

Actual Product May Vary From Image

305 5/1 A WR 182TC 1.438 HUB

Name: 305 5/1 A WR 182TC 1.438 HUB
SKU: 305 5/1 A WR 182TC 1.438 HUB
Availability: OutOfStock

Hub City® PowerCubeX® 0230-09697 300PCX Right Angle Single Reduction Style A Worm Gear Reducer, C-Face Quill Input, Hollow Bore Output, 7.96 hp Input, 5:1 Gear, 350 rpm Maximum Output, 1249 in-lb Output Torque Rating

Manufacturer part number: 0230-09697

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Hub City®

Type

Right Angle Single Reduction Style A

Description

Hub City® PowerCubeX® Worm Gear Reducer, Right Angle Single Reduction Style A, Series: 300PCX, 5:1 Gear Ratio, 7.96 hp Input, C-Face Quill Input, Hollow Bore Output, 1-1/8 in Dia Input, 1.438 in Dia Output, 350 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 1249 in-lb Output, 3 in Centre Distance, 87.1 % Efficiency, Conventional Oil Lubrication, Cast Iron, 7-1/2 in W

Application

Conveyors and Conveying Equipment, Printing Equipment, Agriculture, Food Processing, Bottling Equipment, Grain Handling, Packaging Machinery, Cement and Asphalt

Standards

AGMA Class 1

Features

Modular design
Universal mounting dimensions
Increased thermal capacity and increased efficiency
Alloy shafting
FKM seals

Specifications

Centre Distance:	3 in
Dimensions:	7-1/2 in W
Efficiency:	87.1 %
Gear Ratio:	5:1
Horsepower:	7.96 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	1-1/8 in Dia
Input Type:	C-Face Quill
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Output Maximum Speed:	350 rpm
Output Size:	1.438 in Dia
Output Type:	Hollow Bore
Series:	300PCX
Torque Rating:	1249 in-lb Output
