30504 GRL

Name: 30504 GRL
Brand: Greenlee
SKU: 30504 GRL
Availability: OutOfStock

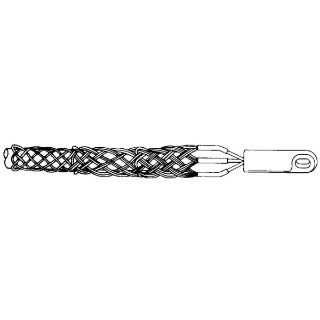

Greenlee® 30504 Basket Type Multiple Strength Cable Pulling Grip, 2.5 to 2.99 in Cable, 52 in L Mesh, 1-7/8 in Dia Eye, 9600 lb Load, Galvanized Steel

Manufacturer: Greenlee

Manufacturer part number: 30504

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Greenlee®

Type

Basket Type Multiple Strength

Description

Greenlee® Cable Pulling Grip, Basket Type Multiple Strength, 2.5 to 2.99 in Cable, Double/Single/Triple Weave Mesh, 52 in Mesh Length, Forged Steel Swivel/Rotating Eye, 1-7/8 in Eye Dia, 10 in Eye Length, 9600 lb, Galvanized Steel, Orange

Application

For heavy duty and long distance pulls

Standards

ARRA Compliant

Features

Use to pull overhead transmission lines, bare or insulated conductors and wire rope
Color coded for easy size identification
Select the grip with a maximum rated capacity that meets or exceeds the cable puller's maximum pulling force

Specifications

Cable Size:	2.5 to 2.99 in
Color:	Orange
Country of Origin:	US
Eye Diameter:	1-7/8 in
Eye Length:	10 in
Eye Type:	Forged Steel Swivel/Rotating
Load Capacity:	9600 lb
Material:	Galvanized Steel
Mesh Length:	52 in
Mesh Type:	Double/Single/Triple Weave
