307PP TKN

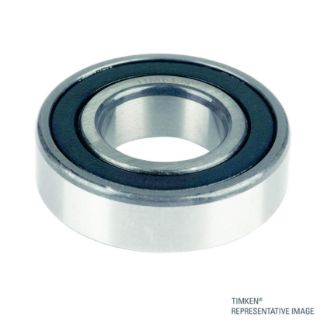

Fafnir® 307PPZ3FS50000 300K Medium Round Bore Radial Deep Groove Ball Bearing, 35 mm Dia Bore, 80 mm OD, 1 Row, 21 mm W, 37700 N Dynamic/18400 N Static Load
Manufacturer: Timken
Manufacturer part number: 307PPZ3FS50000
Availability: Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$97.11

Product Details

Brand Name

Fafnir®

Type

Medium Round Bore

Description

The 300 series radial ball bearings are similar in construction to the 200 series, but have considerably heavier cross sections throughout. They provide greater radial and thrust capacity and are able to withstand heavier shock loads. Because of their rugged construction, these bearings are particularly suited for heavy-duty applications like those found in large electric motors, woodworking machinery and gear boxes. This series includes both conrad and maximum capacity designs as well as shielded, sealed and snap ring variations. In the 300 series wide-type, rubber seal(W300PP) and mechani-seal(W300KLL) bearings are made with standard bores and outside diameters, but in width equal to the corresponding sizes of double-row bearings.
Fafnir® Radial Deep Groove Ball Bearing, Medium Round Bore, Series: 300K, 35 mm Bore, 80 mm OD, 1 Rows, 21 mm Width, Double Seal Closure, 37700 N Dynamic/18400 N Static Load, Steel Bearing, Buna-N Seal, Steel Cage, -30 to 275 deg F, Uncoated

Application

Agricultural, Automotive, Chemical, General Industrial and Utilities

Standards

ABEC 1 Certified

Features

  • A heavier cross section than the 200 series
  • Capable of carrying considerably heavier radial, thrust and combined loads for a given bore size
  • Capable of withstanding heavy shock loads
  • Uses conrad-type bearing that is well-balanced, with deep races and uninterrupted race shoulders
  • Electric motor quality for applications where quietness is a requirement

Specifications

Bearing Material:Steel
Bore Diameter:35 mm
Cage Material:Steel
Closure Type:Double Seal
Country of Origin:US
Finish:Uncoated
Load Capacity:37700 N Dynamic/18400 N Static
Number of Rows:1
Outside Diameter:80 mm
Seal Material:Buna-N
Series:300K
Temperature Rating:-30 to 275 deg F
Width:21 mm
