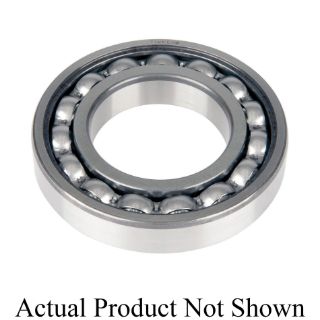

Actual Product May Vary From Image

309 TKN

Name: 309 TKN
Brand: Timken
SKU: 309 TKN
Price: 175.69 USD
Availability: OutOfStock

ISO Deep Groove Radial Ball Bearing

Manufacturer: Timken

Manufacturer part number: 309

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$175.69

Qty:

Product Details

Brand Name

Timken

Description

Timken supplies a full range of product in the world’s most popular design series. Timken® metric deep groove ball bearings deliver reliable performance in a wide range of applications and conditions.

ISO Deep Groove Radial Ball Bearing | 45 mm 1.8 in Bore | 100 mm 3.9 in OD

Features

Super finished raceways
Quiet operations
ISO standard interchangeable dimensions
Electric Motor Quality (EMQ)
Minimal size to performance ratio for ultra compact applications

Specifications

Bearing Material:	Steel
Bearing Type:	Ball Bearing
Bore Size (ID) - in:	1.7717
Bore Size (ID) - mm:	45
Bore Type:	Straight
Closure (Seal) type:	Open
Component (I/R; O/R assembly):	Assembly
Dynamic Load Rating:	13200
Fillet Radius - Inch:	0.059
Fillet Radius - Millimeter:	2
Inner Ring Width - Inch:	0.984
Inner Ring Width - Millimeter:	25
Internal Clearance:	P
Load Rating UOM:	LB
Lubrication Hole/Groove:	No
Manufacturer Product Page Link:	https://www.timken.com/products/timken-engineered-bearings/ball/deep-groove/
Material - Rolling Elements (Ball or Roller):	Ball
Maximum Operating RPM (Grease):	7777.77777777778
Maximum Operating RPM (Oil):	8888.88888888889
Operating Temperature Max:	120° C
Operating Temperature Min:	-50° C
Outer Diameter - in:	3.937
Outer Diameter - mm:	100
Outer Diameter Type:	Cylindrical
Outer Ring Width - Inch:	0.984
Outer Ring Width - Millimeter:	25
Overall Width - in:	0.984
Overall Width - mm:	25
Precision class:	ABEC1
Relubricatable:	No
Retainer Material:	Cold Rolled Steel
Rolling Element:	Ball
Row Type:	Single
Self Aligning:	No
Series:	300
Static Load Rating:	7100
