309002A01F200 WOO

Brad® Mini-Change® connectors are the standard by which all miniature connectors are measured. First introduced in 1968, the Mini-Change® connector pioneered the market for rugged, sealed connectors in industrial applications. These connectors provided the first quick-connect alternative to hard-wiring. Mini-Change® connectors are available in a wide variety of circuits and configurations, with pole configurations available in 2 through 12, 14 and 19. With Mini-Change® connectors, industrial device wiring is easier to install and maintain. To ensure a consistent, low-resistance connection, the patented Quad-Beam™ female contact is used. Connectors are sealed to provide IP67 protection. An anti-vibration feature prevents the coupler from loosening, even under extreme conditions.

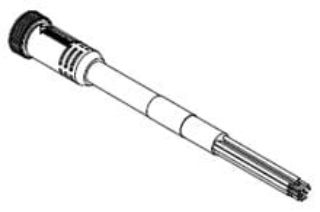

Brad® Mini-Change® Cordset, A-Size/B-Size/C-Size Single Ended, Series: 130008, Male Connector, 1-1/4 in C-Size Connector, PVC, STOOW Cable, 20 ft Cable Length, PVC Cable, 9 Pole, Single Keyway, 600 VAC/VDC, 7 A, Straight, Orange, Blue, Red/Black, Green/Black, White, Red, Green/Yellow, White/Black, Black Wire Pin, IP67 IEC, NEMA 6P
