Actual Product May Vary From Image

30Q25L14 DOD

Name: 30Q25L14 DOD
Brand: Dodge
SKU: 30Q25L14 DOD
Price: 1,676.05 USD
Availability: OutOfStock

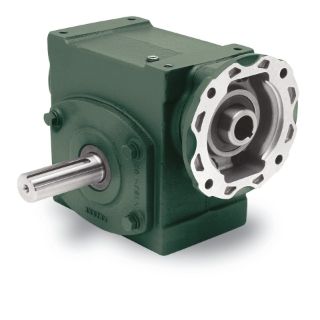

30Q25L14 TIGEAR-2 REDUCER

Manufacturer: Dodge

Manufacturer part number: 30Q25L14

Estimated dates are contingent upon manufacturer stock.

Please login to see accurate availability

$1,676.05

Qty:

Product Details

Base to Output Center Height:	3.2500
Base to Output Center Height (Unit):	INCH
Case Size:	30
Center Distance:	3.0000
Center Distance (Unit):	INCH
Center to End of Shaft Distance:	6.7500
Center to End of Shaft Distance (Unit):	INCH
Gearbox Component Type:	Gearbox
Horsepower Rating Input:	3.0500
Horsepower Rating Input (Unit):	HORSEPOWER
Horsepower Rating Output:	2.5400
Horsepower Rating Output (Unit):	HORSEPOWER
Housing Material:	Cast Iron
Input Style:	Quill
Lubrication:	PAG, Standard Temperature
Motor Compatibility:	NEMA Motor, 140TC Frame
Mounting Bolt Pattern Length:	7.0000
Mounting Bolt Pattern Length (Unit):	INCH
Mounting Bolt Pattern Width:	4.0000
Mounting Bolt Pattern Width (Unit):	INCH
Nominal Ratio:	25.0000
Output Shaft:	Left (Solid A)
Output Shaft Center to Input Motor Mounting Face Distance:	6.1100
Output Shaft Center to Input Motor Mounting Face Distance (Unit):	INCH
Output Style:	Left
Overhung Load:	2300
Overhung Load (Unit):	POUND_FORCE
Paint Type:	Standard
Rated Torque Output:	2284
Rated Torque Output (Unit):	INCH_POUND
Seal Type:	Single-Lip Contact
Shaft Diameter Output:	1.3750
Shaft Diameter Output (Unit):	INCH
Shaft Length Output:	3.2000
Shaft Length Output (Unit):	INCH
Suitable For Washdown:	No
Thermal Horsepower Rating:	3.9000
Thermal Horsepower Rating (Unit):	HORSEPOWER
