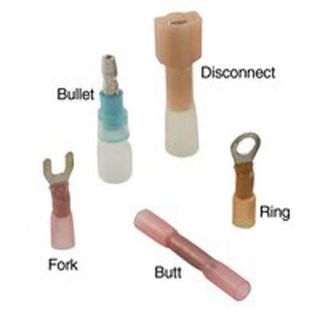

Actual Product May Vary From Image

31323-B10 ILS

Name: 31323-B10 ILS
Brand: Ilsco
SKU: 31323-B10 ILS
Price: 12.08 USD
Availability: OutOfStock

ILSCO® ClearChoice® Crimp N Seal® 31323-B10 Type CNS Insulated Fork Terminal, 16 to 14 AWG Conductor, 1/4 in L, Serrated Barrel, Copper Alloy, Blue

Manufacturer: Ilsco

Manufacturer part number: 31323-B10

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

$12.08

Qty:

Product Details

Brand Name

ILSCO®

Type

Type CNS Insulated

Description

ILSCO® ClearChoice® Crimp N Seal® Fork Terminal, Type CNS Insulated Type, Copper Conductor, 16 to 14 AWG Conductor, #8 Stud, 1/4 in Length, Serrated Barrel, Fork Tongue, 1.07 in W Tongue, 600 VAC, Specifications: 0.19 in Dia Wire Insulation, 90 deg C, Copper Alloy, Electro-Tin Plated Finish, Blue

Application

Terminating Connector Applications

Standards

UL 8M24 File No. E158587 | CSA Certified | PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov

Features

Manufactured from high strength copper alloy
Watertight and heat shrinkable
Dual wall tubing
Irradiated, thermally stabilized, high density polyolefin has inner wall of hot melt adhesive to insure watertight seal
Provides easy wire range identification
Provides maximum conductivity
Provides low contact resistance
Silver solder brazed seam
May be crimped anywhere and will not split open, even under extreme operating stresses
Ensures reliability for copper conductor
"V" grooves inside barrel securely grip wire and prevent pullout
Can be displayed on merchandise racks

Specifications

Barrel Type:	Serrated
Color:	Blue
Conductor Size:	16 to 14 AWG
Conductor Type:	Copper
Country of Origin:	US
Finish:	Electro-Tin Plated
Length:	1/4 in
Material:	Copper Alloy
Specifications:	0.19 in Dia Wire Insulation
Stud Size:	#8
Temperature Rating:	90 deg C
Tongue Size:	1.07 in W
Tongue Type:	Fork
Voltage Rating:	600 VAC
