Actual Product May Vary From Image

315MMT BSF

Name: 315MMT BSF
Brand: Bussmann
SKU: 315MMT BSF
Availability: OutOfStock

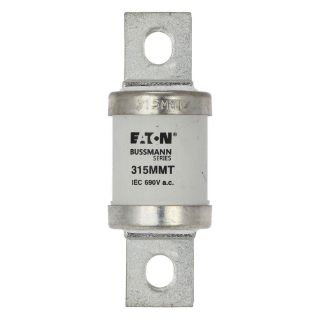

Bussmann 315MMT British Style High Speed Fuse, 315 A, 240 VAC/150 VDC, 200 kA Interrupt, Class: AR, Cartridge Body

Manufacturer: Bussmann

Manufacturer part number: 315MMT

Availability: Expected Leadtime 33 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

British Style

Description

Eaton's Bussmann British standard BS88 fuses can be used in multiple applications; industrial, utility, street lighting and domestic. Full range of rated current and voltage available as well as compatible fuse holders. They meet the BS88 part 1 and 2 and IEC 60269-1 and -2 standards.

Bussmann High Speed Fuse, British Style, Series: MMT, Indicating/Non-Indicating: Non-Indicating, 315 A, 240 VAC/150 VDC, 200 kA Interrupt, Class: AR, Blade Terminal, Stud Mount, Cartridge Body Type, 4.38 in L x 1.5 in W x 1.5 in H Body Size

Application

Aftermarket, Control Panels for Machines, Panel Builders, OEMs, Electrical Assemblies, Panels, Power Distribution and Control, DC Common Bus, DC Drives, Power Converters/Rectifiers and Reduced Voltage Starter, Safety and Security Systems

Standards

BS 88 Part 4 | CE Certified | IEC 60269 Part 4 | RoHS Compliant | UL Recognized

Features

Excellent cycling capability
Excellent DC performance
Low arc voltage and low energy let through
BS88 style bolted tags high speed fuse
Low wattage loss
200 kA at AC, 40 kA at 350 VDC interrupt rating

Specifications

Amperage Rating:	315 A
Body Size:	4.38 in L x 1.5 in W x 1.5 in H
Body Type:	Cartridge
Class:	AR
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	200 kA
Mounting Type:	Stud
Series:	MMT
Terminal Type:	Blade
Voltage Rating:	240 VAC/150 VDC
