3170-PDP PRS

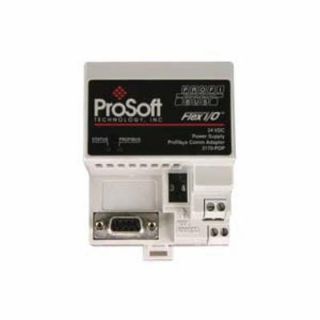

ProSoft Technology 3170-PDP Network Interface Adapter, RS232/422/485 Interface, 2 Ports, 12/24 VDC/340/170 mA
Manufacturer: Prosoft Technology
Manufacturer part number: 3170-PDP
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

ProSoft Technology

Description

The 3170-PDP PROFIBUS-DP Network Interface Adapter is a slave device that allows Rockwell Automation FLEX and/or Integra I/O modules to interface directly with a PROFIBUS-DP Master/Scanner.
ProSoft Technology Network Interface Adapter, RS232/422/485 Interface, 2 Ports, 12/24 VDC/340/170 mA Supply, 3.7 in Width, 3 in Height, DIN Rail Mounting, Environmental Conditions: -40 to 185 deg F Operating Temperature, 5 to 95% Non-Condensing Relative Humidity

Application

For FLEX I/O

Features

  • Simple to use, requiring only the setting of the node address and the connection of 24 vdc power
  • The flex and Integra module data images are configured using standard PROFIBUS configuration tools
  • The GSD file, available in the download section, defines the available I/O modules and their data images for PROFIBUS configuration
  • Single-slot 1794 backplane compatible form factor
  • Locate in any slot of backplane
  • 20 mA at 5 vdc backplane current load
  • 30 g operational/50 g non-operational shock
  • 5 g from 10 to 150 Hz vibration
  • LED indicators for module status, backplane transfer status, application status, serial activity and error LED status
  • Mini-DIN/RS-232/hardware handshaking configuration serial port
  • Mini-DIN/RS-232/422/485 jumper selectable/500 V optical isolation from backplane application serial port
  • 8.6 W maximum input power
  • 2.7 in depth
  • 32 to 131 deg F operating temperature

Specifications

Country of Origin:US
Environmental Conditions:-40 to 185 deg F Operating Temperature, 5 to 95% Non-Condensing Relative Humidity
Height:3 in
Interface:RS232/422/485
Mounting Type:DIN Rail
Number of Ports:2
Power Supply:12/24 VDC/340/170 mA
Width:3.7 in
