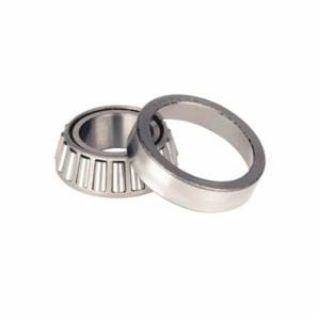

Actual Product May Vary From Image

32026XM-90KM6 TKN

Name: 32026XM-90KM6 TKN
Brand: Timken
SKU: 32026XM-90KM6 TKN
Availability: OutOfStock

Timken® 32026XM-90KM6 Type TS Tapered Roller Bearing, 130 mm Dia Bore, 200 mm OD, 1 Row, 45 mm W, 386000 N Dynamic/617000 N Static Load

Manufacturer: Timken

Manufacturer part number: 32026XM-90KM6

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Timken®

Type

Type TS

Description

Timken® Tapered Roller Bearing, Type TS, Series: 320, 130 mm Bore Dia, 200 mm Outside Dia, 1 Rows, 45 mm Width, 386000 N Dynamic/617000 N Static, Stamped Steel Cage, -54 to 120 deg C

Application

Vehicle Front Wheels, Differential and Pinion Configurations, Conveyor Rolls, Machine Tool Spindles and Trailer Wheels

Features

Single cone and cup
One-piece pressed steel cage retains rollers on the cone and spaces them evenly

Specifications

Bore Diameter:	130 mm
Cage Material:	Stamped Steel
Load Capacity:	386000 N Dynamic/617000 N Static
Number of Rows:	1
Outside Diameter:	200 mm
Series:	320
Temperature Rating:	-54 to 120 deg C
Width:	45 mm
