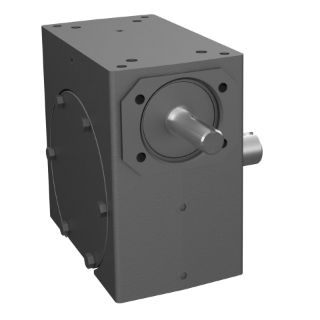

Actual Product May Vary From Image

321L 10/1 C WR HUB

Name: 321L 10/1 C WR HUB
SKU: 321L 10/1 C WR HUB
Availability: OutOfStock

Hub City® PowerCubeX® 0230-15647 320LPCX Right Angle Single Reduction Style C Worm Gear Reducer, Shaft Input, Shaft Output, 6.76 hp Input, 10:1 Gear, 175 rpm Maximum Output, 2277 in-lb Output Torque Rating

Manufacturer part number: 0230-15647

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Hub City®

Type

Right Angle Single Reduction Style C

Description

Hub City® PowerCubeX® Worm Gear Reducer, Right Angle Single Reduction Style C, Series: 320LPCX, 10:1 Gear Ratio, 6.76 hp Input, Shaft Input, Shaft Output, 7/8 in Dia Input, 1-3/8 in Dia Output, 175 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 2277 in-lb Output Torque, 3-1/4 in Centre Distance, 3/16 x 3/32 in Input, 5/16 x 5/32 in Output Keyway, 92.9 % Efficiency, PAG Synthetic Oil Lubrication, Cast Iron, 10.88 in W

Features

Modular design
Universal mounting dimensions
Increased thermal capacity and increased efficiency
Alloy shafting
FKM seals
Factory lubricated with food-grade synthetic lubricant - USDA class H1 approved

Specifications

Centre Distance:	3-1/4 in
Dimensions:	10.88 in W
Efficiency:	92.9 %
Gear Ratio:	10:1
Horsepower:	6.76 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	7/8 in Dia
Input Type:	Shaft
Keyway Size:	3/16 x 3/32 in Input, 5/16 x 5/32 in Output
Lubrication Type:	PAG Synthetic Oil
Material:	Cast Iron
Output Maximum Speed:	175 rpm
Output Size:	1-3/8 in Dia
Output Type:	Shaft
Series:	320LPCX
Torque Rating:	2277 in-lb Output
