3220PT1C LBB

Name: 3220PT1C LBB
Brand: Rexnord
SKU: 3220PT1C LBB
Availability: OutOfStock

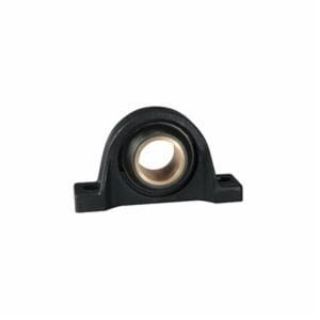

Link-Belt® 3220PT1C 3200P 1-Piece Standard-Duty Pillow Block Sleeve Bearing Unit, 1-1/4 in Dia Bore, 4-15/16 in L Bolt Center-to-Center, 1-7/8 in Base to Bore Centerline, 6-3/8 in OAL x 3-11/16 in OAH

Manufacturer: Rexnord

Manufacturer part number: 3220PT1C

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Link-Belt®

Type

1-Piece Standard-Duty

Description

Flex-Block® sleeve bearings are alignable and self-lubricating. Because the bearing material wears gradually under operation, sudden breakdowns and costly maintenance are minimized. The standard bearing insert materials of oil impregnated porous sintered bronze or self-lubricating graphite are widely used for the extreme applications of modern industry.

Link-Belt® Pillow Block Sleeve Bearing Unit, 1-Piece Standard-Duty, Series: 3200P, 1-1/4 in Bore, 4-15/16 in Bolt Center-to-Center Length, 1-7/8 in Base to Bore Centerline, 6-3/8 in Overall Length, 1-7/8 in Overall Width, 3-11/16 in Overall Height, Two-Bolt Base Mounting, 1-7/8 in Base Width, Unsealed Seal, Non-Expansion (Fixed) Expansion, 52 lb Load, 200 deg F, 2500 rpm Maximum, Cast Iron, Powder Coated

Application

Commercial Furnaces, Heat Treatment, Wastewater Management, Dams and Air Handling Industries

Features

Sturdy 1-piece housings with machined mounting surfaces
Component has machined spherical surface for proper seating in housing and for initial mounting alignment
Extend unit life
Oil impregnated sleeve bearing
Oil impregnated porous sintered bronze

Specifications

Base to Bore Centerline:	1-7/8 in
Base Width:	1-7/8 in
Bolt Center-to-Center Length:	4-15/16 in
Bore Diameter:	1-1/4 in
Country of Origin:	MX
Expansion Type:	Non-Expansion (Fixed)
Finish:	Powder Coated
Load Capacity:	52 lb
Material:	Cast Iron
Maximum Speed:	2500 rpm
Mounting Type:	Two-Bolt Base
Overall Height:	3-11/16 in
Overall Length:	6-3/8 in
Overall Width:	1-7/8 in
Seal Type:	Unsealed
Series:	3200P
Temperature Rating:	200 deg F
