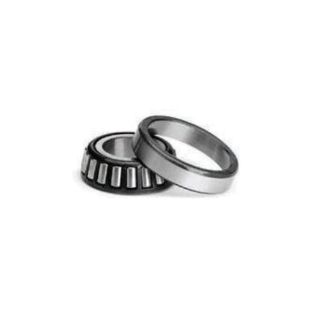

32224 BLT

Taper Roller Bearings utilize cone shaped rollers in an inner ring which rolls on tapered outer ring surfaces. The rollers are guided by a cage and the projection lines of the tapered surfaces meet at a common point on the bearing axis. Their design makes them suitable for combined (radial and axial) loads and heavy axial loads determined by the contact angle. Standard designs are typically separable and most commonly designed with a cone (inner ring with cage and rollers), which can be mounted separately from the cup (outer ring). This design allows for great flexibility in assembly and is one of the key advantages to this type of bearing. Unlike the common inch series taper roller bearings, metric Tapered Roller Bearings are sold exclusively as a complete cup and cone set.

TRITAN® Tapered Roller Bearing, 120 mm Bore, 215 mm OD, 61.5 mm Width, 146800 lb Load, 1600 rpm Grease/2200 rpm Oil Maximum, 250 deg F
