3223FXT3 LBB

Name: 3223FXT3 LBB
Brand: Rexnord
SKU: 3223FXT3 LBB
Availability: OutOfStock

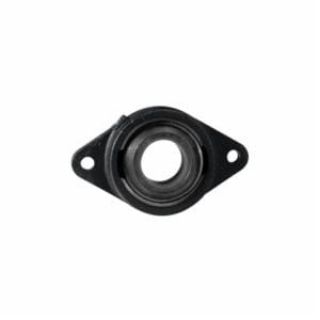

Link-Belt® Flex-Block® 3223FXT3 3200 Non-Expansion Standard Duty Flanged Sleeve Bearing Unit With Graphite Bushing, 1-7/16 in Dia Bore, 5-1/8 in L Bolt Center-to-Center, 2-Bolt Flange Mount, 6-1/8 in OAL/Dia

Manufacturer: Rexnord

Manufacturer part number: 3223FXT3

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Link-Belt®

Type

Non-Expansion Standard Duty

Description

Flex-Block® sleeve bearings are alignable and self-lubricating. Because the bearing material wears gradually under operation, sudden breakdowns and costly maintenance are minimized. The standard bearing insert materials of oil impregnated porous sintered bronze or self-lubricating graphite are widely used for the extreme applications of modern industry.

Link-Belt® Flex-Block® Flanged Sleeve Bearing Unit, Non-Expansion Standard Duty, Series: 3200, 1-7/16 in Bore, 5-1/8 in Bolt Center-to-Center Length, 2-Bolt Flange Mounting, 6-1/8 in Overall Length/Diameter, 1-11/16 in Overall Depth, 1-21/32 in Overall Height, Carbon Graphite Bearing, 43 ft-lb Load, 1500 rpm Maximum, 700 deg F, Powder Coated

Application

Commercial Furnaces, Heat Treatment, Wastewater Management, Dams and Air Handling Industries

Standards

ANSI | ABMA STD 11-1990

Features

Sturdy 1-piece housings with machined mounting surfaces
Component has machined spherical surface for proper seating in housing and for initial mounting alignment
When the component retaining screw is loosened the insert can be rotated 180 deg to utilize unused bearing surface and extend the life of the unit
Cast iron housing
Corrosion-resistant
Self-lubricating sleeve bearing

Specifications

Bearing Material:	Carbon Graphite
Bolt Center-to-Center Length:	5-1/8 in
Bore Diameter:	1-7/16 in
Country of Origin:	US
Finish:	Powder Coated
Flange Mounting Type:	2-Bolt
Load Capacity:	43 ft-lb
Maximum Speed:	1500 rpm
Overall Depth:	1-11/16 in
Overall Height:	1-21/32 in
Overall Length/Diameter:	6-1/8 in
Series:	3200
Temperature Rating:	700 deg F
