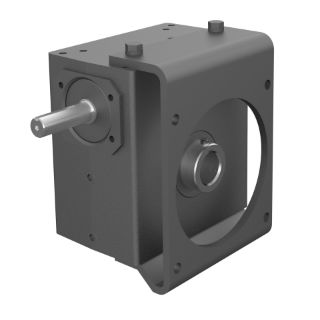

Actual Product May Vary From Image

323 80/1 R WR 2.188 HUB

Name: 323 80/1 R WR 2.188 HUB
SKU: 323 80/1 R WR 2.188 HUB
Availability: OutOfStock

Hub City® PowerCubeX® 0230-14779 320PCX Right Angle Single Reduction Style R Worm Gear Reducer, Shaft Input, Hollow Bore Output, 1.2 hp Input, 80:1 Gear, 21.9 rpm Maximum Output, 2221 in-lb Output Torque Rating

Manufacturer part number: 0230-14779

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Hub City®

Type

Right Angle Single Reduction Style R

Description

Hub City® PowerCubeX® Worm Gear Reducer, Right Angle Single Reduction Style R, Series: 320PCX, 80:1 Gear Ratio, 1.2 hp Input, Shaft Input, Hollow Bore Output, 0.875 in Dia x 2.38 in L Input, 2.188 in Dia Output, 21.9 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 2221 in-lb Output, 3-1/4 in Centre Distance, 3/16 x 3/32 in Input Keyway, 64.1 % Efficiency, Conventional Oil Lubrication, Cast Iron, 7.78 in W x 10.14 in H

Application

Conveyors and Conveying Equipment, Printing Equipment, Agriculture, Food Processing, Bottling Equipment, Grain Handling, Packaging Machinery, Cement and Asphalt

Standards

AGMA Class 1

Features

Modular design
Universal mounting dimensions
Increased thermal capacity and increased efficiency
Alloy shafting
FKM seals

Specifications

Centre Distance:	3-1/4 in
Dimensions:	7.78 in W x 10.14 in H
Efficiency:	64.1 %
Gear Ratio:	80:1
Horsepower:	1.2 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	0.875 in Dia x 2.38 in L
Input Type:	Shaft
Keyway Size:	3/16 x 3/32 in Input
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Output Maximum Speed:	21.9 rpm
Output Size:	2.188 in Dia
Output Type:	Hollow Bore
Series:	320PCX
Torque Rating:	2221 in-lb Output
