32347-DY3 LEV

Name: 32347-DY3 LEV
Brand: Leviton Manufacturing
SKU: 32347-DY3 LEV
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Leviton Manufacturing

Manufacturer part number:

32347-DY3

CBT Inventory

Vendor Inventory

Availability:

Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Leviton®

Type

Type 2

Description

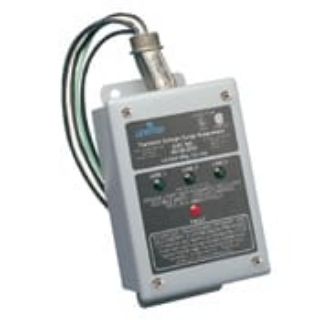

Leviton® 32000 series panel mounted multi-phase surge protective devices are some of our most popular surge protection panel lines. These cost-effective products provide excellent service entrance and branch panel protection for any Commercial/Industrial application. All models protect against high energy, high voltage transient surges and are made with exceptional durability for long term protection.

Leviton® Surge Panel, Series: 32000, 347/600 VAC Electrical Rating, 50/60 Hz Frequency, 5 Wires, 100 kA Short Circuit, 80 kA Peak Surge Current, Modes of Protection: L-N/L-G/N-G/L-L, LED/Noise Filtering/Audible Alarm Indicator, 3 ph, Environmental Conditions: -10 to 60 deg C Operating Temperature, -20 to 85 deg C Storage Temperature, 5 to 95% Non-Condensing Humidity, UL 94 V-2 Flammability, NEMA 3R Enclosure, Panel Mounting, Lead Wire Terminal, Steel, 7-1/2 in H x 4-1/4 in W x 3-1/4 in D Dimensions

Application

Commercial

Standards

ANSI | IEEE C-62.41/C-62.45 | CSA C22.2 Certified

Features

32000 series features reduced noise filtering for optimum compatibility with Leviton® Decora® home control and X10 communication network devices
Parallel operated design features 40 mm Dia, metal oxide varistors and EMI/RFI filter circuitry equipped with high voltage rise capacitors for harmonic tolerance
Equipped with indicator lights and audible alarm for monitoring power and surge suppression status
3-phase units are suitable for both WYE and DELTA alternating current systems
Parallel hardwired via 12 AWG wire connection
Transient voltage surge suppression module
Without surge counter

Specifications

Country of Origin:	MX
Dimensions:	7-1/2 in H x 4-1/4 in W x 3-1/4 in D
Electrical Ratings:	347/600 VAC
Enclosure Type:	NEMA 3R
Environmental Conditions:	-10 to 60 deg C Operating Temperature, -20 to 85 deg C Storage Temperature, 5 to 95% Non-Condensing Humidity, UL 94 V-2 Flammability
Frequency Rating:	50/60 Hz
Indicator Type:	LED/Noise Filtering/Audible Alarm
Material:	Powder Coated Steel
Modes of Protection:	L-N/L-G/N-G/L-L
Mounting Type:	Panel
Number of Wires:	5
Peak Surge Current:	80 kA
Phase:	3
Series:	32000
Short Circuit Current Rating:	100 kA
Terminal Type:	Lead Wire
