3263PT1 LBB

Flex-Block® sleeve bearings are alignable and self-lubricating. Because the bearing material wears gradually under operation, sudden breakdowns and costly maintenance are minimized. The standard bearing insert materials of oil impregnated porous sintered bronze or self-lubricating graphite are widely used for the extreme applications of modern industry.

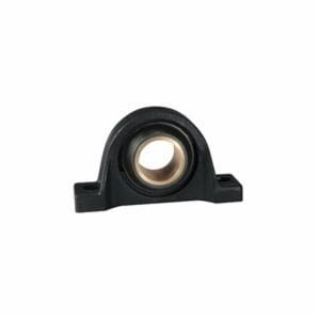

Link-Belt® Pillow Block Sleeve Bearing Unit, 1-Piece Standard-Duty, Series: 3200P, 3-15/16 in Bore, 11-7/8 in Bolt Center-to-Center Length, 4-7/16 in Base to Bore Centerline, 15-1/4 in Overall Length, 4-15/16 in Overall Width, 8-15/16 in Overall Height, Two-Bolt Base Mounting, 4-3/8 in Base Width, Unsealed Seal, Non-Expansion (Fixed) Expansion, 500 lb Load, 200 deg F, 750 rpm Maximum, Cast Iron, Powder Coated
