Actual Product May Vary From Image

33-14073 MEL

Name: 33-14073 MEL
Brand: Meltric
SKU: 33-14073 MEL
Price: 285.84 USD
Availability: OutOfStock

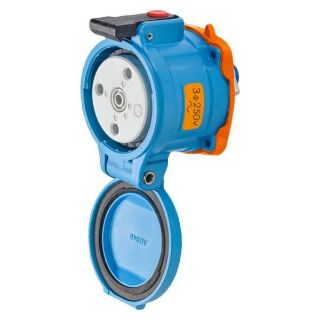

MELTRIC DECONTACTOR™ 33-14073 DS20 Switch Rated Female Receptacle With Ground, 110/125/220/250 VAC, 20 A, 3 Poles, 4 Wires, Blue

Manufacturer: Meltric

Manufacturer part number: 33-14073

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$285.84

Qty:

Product Details

Brand Name

MELTRIC

Type

Switch Rated

Description

DS series DECONTACTOR™ provide a useful combination of capacity and ruggedness. DS are often used to connect motors and welders in the metals, quarry, automotive and mining industries. They are designed for applications requiring large wiring capacities. The DS's environmental rating is achieved as soon as the plug and receptacle are fully engaged, making them an excellent choice for outdoor applications where rainproof performance is required.

MELTRIC DECONTACTOR™ Female Receptacle, Switch Rated, Series: 33-14073 DS20, 110/125/220/250 VAC, 20 A, 60 Hz, 3 Pole, 4 Wires, NEMA 3R, IP54/IP55 Enclosure, -40 to 140 deg F, Screw Terminal, Polyester, Blue, 2.72 in Dia x 3.15 in L

Application

Metal, Quarry, Automotive, Mining Industries, Heavy Industry and High Amperage Equipment Applications

Standards

Features

Switch and hp rated (AC only)
65 to 100 kA short circuit rated
Amperage rating up to 200 A
Up to 6 auxiliary contacts
Spring assisted screw terminals patented design assures ''tighten and forget'' confidence
Spring loaded butt-style contacts ensures optimal contact force and superior electrical performance over thousands of operations
Lid provides Type 3R water protection (4X optional) for additional protection in harsh environments
OFF button press to de-energize and provides push button circuit disconnection
Dead front/safety shutter assures safety by preventing user access to live parts
3/4 hp at 120 VAC 1-phase, 3 hp at 240 VAC, 20 hp at 208 VAC, 5 hp at 240 VAC, 7-1/2 hp at 480 VAC, 10 hp at 600 VAC 3-phase horsepower rating

Specifications

Amperage Rating:	20 A
Color:	Blue
Country of Origin:	US
Dimensions:	2.72 in Dia x 3.15 in L
Enclosure:	IP54/IP55
Frequency Rating:	60 Hz
Material:	Polyester
NEMA Rating:	NEMA 3R
Number of Poles:	3
Number of Wires:	4
Series:	DS20
Temperature Rating:	-40 to 140 deg F
Terminal Type:	Screw
Voltage Rating:	110/125/220/250 VAC
