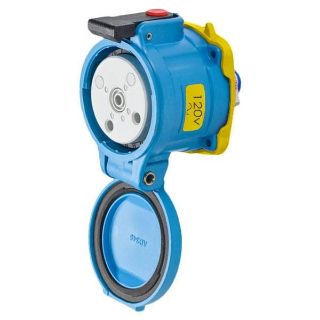

Actual Product May Vary From Image

33-14165 MEL

Name: 33-14165 MEL
Brand: Meltric
SKU: 33-14165 MEL
Price: 256.12 USD
Availability: OutOfStock

MELTRIC DECONTACTOR™ 33-14165 DS20 Female Switch Rated Receptacle, 120/127/208/220 VAC, 20 A, 2 Poles, 3 Wires, Blue

Manufacturer: Meltric

Manufacturer part number: 33-14165

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$256.12

Qty:

Product Details

Brand Name

MELTRIC

Type

Female

Description

DS Series DECONTACTOR™ provide a useful combination of capacity and ruggedness. DS are often used to connect motors and welders in the metals, quarry, automotive and mining industries. They are designed for applications requiring large wiring capacities. The DS's environmental rating is achieved as soon as the plug and receptacle are fully engaged, making them an excellent choice for outdoor applications where rainproof performance is required.

MELTRIC DECONTACTOR™ Switch Rated Receptacle, Female, Series: DS20, 120/127/208/220 VAC, 20 A, 3/4 hp, 60 Hz Frequency, 2 Poles, 3 Wires, NEMA 3R, IP55 Enclosure, -40 to 140 deg F, Screw Terminal, PBT, Blue, 3.75 in H x 3.26 in D Dimensions

Application

Industrial and High hp Motor Applications

Standards

ARRA Compliant | Buy American Act Compliant | RoHS Compliant | UL 1682 | 2682 | CSA C22.2 No. 182.1 | IEC 60309-1

Features

Spring assisted screw terminals
Spring loaded butt style contacts
OFF button press to deenergize, provides push button circuit disconnection
Dead front/safety shutter
Fiberglass reinforced thermoplastic polyester material offers great resistance to impact, corrosion and harsh environmental conditions
Lid provides additional protection from harsh environments
3/4 hp at 120 VAC 1-phase horsepower rating

Specifications

Amperage Rating:	20 A
Color:	Blue
Country of Origin:	US
Dimensions:	3.75 in H x 3.26 in D
Enclosure:	IP55
Frequency Rating:	60 Hz
Horsepower:	3/4 hp
Material:	PBT
NEMA Rating:	NEMA 3R
Number of Poles:	2
Number of Wires:	3
Series:	DS20
Temperature Rating:	-40 to 140 deg F
Terminal Type:	Screw
Voltage Rating:	120/127/208/220 VAC
