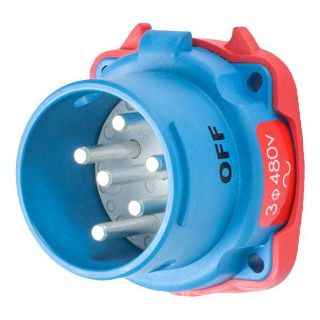

Picture of 33-18043-972 MEL
Actual Product May Vary From Image

33-18043-972 MEL

MELTRIC DECONTACTOR™ 33-18043-972 DS20 Switch Rated Male Inlet With (2) Auxiliary/Pilot Contacts and Ground, 255/277/440/480 VAC, 20 A, 3 Poles, 4 Wires, Blue
Manufacturer: Meltric
Manufacturer part number: 33-18043-972
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$169.12

Product Details

Brand Name

MELTRIC

Type

Switch Rated

Description

DS Series DECONTACTOR™ provide a useful combination of capacity and ruggedness. DS are often used to connect motors and welders in the metals, quarry, automotive and mining industries. They are designed for applications requiring large wiring capacities. The DS's environmental rating is achieved as soon as the plug and receptacle are fully engaged, making them an excellent choice for outdoor applications where rainproof performance is required.
MELTRIC DECONTACTOR™ Male Inlet, Switch Rated, Series: DS20, 255/277/440/480 VAC, 20 A, 7-1/2 hp, 60 Hz Frequency, 3 Pole, 4 Wires, NEMA 3R, IP54/IP55 Enclosure, -40 to 140 deg F, Screw Terminal, Polyester, Blue, 2.62 in Dia x 1.89 in L Dimensions

Application

Metal, Quarry, Automotive, Mining Industries, Heavy Industry and High Amperage Equipment Applications

Standards

ARRA Compliant | Buy American Act Compliant | RoHS Compliant | UL 2682 | UL 1682 | CSA 182.1 | CE Marked | NOM Certified | IEC Certified | NFPA 70E

Features

  • Switch and horsepower rated (AC only
  • 65 to 100 kA short circuit rated
  • Up to 200 A amperage rating
  • Up to 4 auxiliary contacts
  • Fiberglass reinforced thermoplastic polyester material offers great resistance to impact, corrosion and harsh environmental conditions
  • Solid silver nickel contact surfaces provide superior conductivity, durability and corrosion resistance
  • 14 to 8 AWG wire
  • 3/4 hp at 120 VAC 1-phase, 3 hp at 240 VAC, 20 hp at 208 VAC, 5 hp at 240 VAC, 5 hp, 7-1/2 hp at 480 VAC, 10 hp at 600 VAC 3-phase horsepower rating

Specifications

Amperage Rating:20 A
Color:Blue
Country of Origin:US
Dimensions:2.62 in Dia x 1.89 in L
Enclosure:IP54/IP55
Frequency Rating:60 Hz
Horsepower:7-1/2 hp
Material:Polyester
NEMA Rating:NEMA 3R
Number of Poles:3
Number of Wires:4
Series:DS20
Temperature Rating:-40 to 140 deg F
Terminal Type:Screw
Voltage Rating:255/277/440/480 VAC
