Actual Product May Vary From Image

33-18165 MEL

Name: 33-18165 MEL
Brand: Meltric
SKU: 33-18165 MEL
Price: 106.92 USD
Availability: OutOfStock

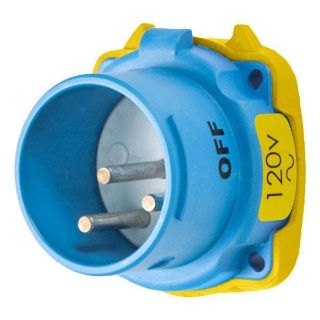

MELTRIC DECONTACTOR™ 33-18165 DS20 Male Switch Rated Inlet, 120/127/208/220 VAC, 20 A, 2 Poles, 3 Wires, Blue

Manufacturer: Meltric

Manufacturer part number: 33-18165

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$106.92

Qty:

Product Details

Brand Name

MELTRIC

Type

Male

Description

DS Series DECONTACTOR™ provide a useful combination of capacity and ruggedness. DS are often used to connect motors and welders in the metals, quarry, automotive and mining industries. They are designed for applications requiring large wiring capacities. The DS's environmental rating is achieved as soon as the plug and receptacle are fully engaged, making them an excellent choice for outdoor applications where rainproof performance is required.

MELTRIC DECONTACTOR™ Switch Rated Inlet, Male, Series: DS20, 120/127/208/220 VAC, 20 A, 3/4 hp, 60 Hz Frequency, 2 Pole, 3 Wires, NEMA 3R, IP54 Enclosure, -40 to 140 deg F, Screw Terminal, PBT, Blue, 2.79 in H x 2.55 in D Dimensions

Application

Industrial and High hp Motor Applications

Standards

Features

Solid silver nickel contact surfaces provide superior conductivity, lid durability and corrosion resistance
Lockout tagout provisions allows plug to be easily locked out and tagged
Fiberglass reinforced thermoplastic polyester material offers great resistance to impact, corrosion and harsh environmental conditions
3/4 hp at 120 VAC 1-phase horsepower rating

Specifications

Amperage Rating:	20 A
Color:	Blue
Country of Origin:	US
Dimensions:	2.79 in H x 2.55 in D
Enclosure:	IP54
Frequency Rating:	60 Hz
Horsepower:	3/4 hp
Material:	PBT
NEMA Rating:	NEMA 3R
Number of Poles:	2
Number of Wires:	3
Series:	DS20
Temperature Rating:	-40 to 140 deg F
Terminal Type:	Screw
Voltage Rating:	120/127/208/220 VAC
