33-64243-C-K04 MEL

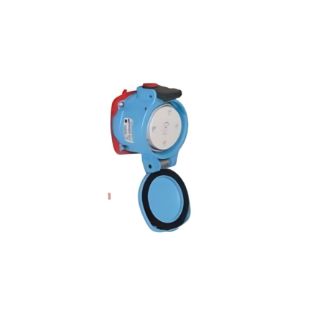

Picture of 33-64243-C-K04 MEL
Actual Product May Vary From Image

Product Details

Manufacturer:
Meltric
Manufacturer part number:
33-64243-C-K04
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$851.44 / EA

Description

Brand Name

MELTRIC

Type

Switch Rated

Description

DS series DECONTACTOR™ provide a useful combination of capacity and ruggedness. DS are often used to connect motors and welders in the metals, quarry, automotive and mining industries. They are designed for applications requiring large wiring capacities. The DS's environmental rating is achieved as soon as the plug and receptacle are fully engaged, making them an excellent choice for outdoor applications where rainproof performance is required.
MELTRIC DECONTACTOR™ Female Receptacle, Switch Rated, Series: 33-64243-C-K04 DS100C, 255/277/440/480 VAC, 100 A, 50 hp, 60 Hz, 3 Pole, 4 Wires, NEMA 3R, IP54/IP55 Enclosure, -40 to 140 deg F, Screw Terminal, Polyester, Blue, 3.86 in Dia x 4.06 in L

Application

Metal, Quarry, Automotive, Mining Industries, Heavy Industry and High Amperage Equipment Applications

Standards

ARRA Compliant | Buy American Act Compliant | RoHS Compliant | UL 2682/1682 | CSA 182.1 | CE Certified | NOM Certified | IEC Certified | NFPA 70E

Features

  • Switch and hp rated (AC only)
  • 65 to 100 kA short circuit rated
  • Amperage rating up to 200 A
  • Up to 6 auxiliary contacts
  • Spring assisted screw terminals patented design assures ''tighten and forget'' confidence
  • Spring loaded butt-style contacts ensures optimal contact force and superior electrical performance over thousands of operations
  • Lid provides Type 3R water protection (4X optional) for additional protection in harsh environments
  • OFF button press to de-energize and provides push button circuit disconnection
  • Dead front/safety shutter assures safety by preventing user access to live parts
  • 5 hp at 120 VAC, 10 hp at 240 VAC 1-phase, 20 hp at 208/240 VAC, 50 hp at 480/600 VAC 3-phase horsepower rating

Specifications

Amperage Rating:100 A
Color:Blue
Country of Origin:US
Dimensions:3.86 in Dia x 4.06 in L
Enclosure:IP54/IP55
Frequency Rating:60 Hz
Horsepower:50 hp
Material:Polyester
NEMA Rating:NEMA 3R
Number of Poles:3
Number of Wires:4
Series:DS100C
Temperature Rating:-40 to 140 deg F
Terminal Type:Screw
Voltage Rating:255/277/440/480 VAC
