33-928 IDE

Name: 33-928 IDE
Brand: Ideal Industries
SKU: 33-928 IDE
Availability: OutOfStock

IDEAL® FiberMASTER™ 33-928 Digital Multi-Mode/Single Mode Power Meter, For Use With Fiber Optic Cable

Manufacturer: Ideal Industries

Manufacturer part number: 33-928

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

IDEAL®

Type

Digital Multi-Mode/Single Mode

Alternate Supplier #

Grainger - 6KJU3

Description

The IDEAL® FiberMASTER™ fiber optic testing kit allows the user to measure absolute power and calculate the loss of fiber optic links at several wavelengths. Absolute power measurements are helpful when troubleshooting equipment that may not be operating properly. The dB calibration feature allows the operator to set a reference level to the light source and directly read the loss of fiber optic links without needing to manually calculate the values. The unique form factor allows the light source to be docked neatly within the power meter. This makes the kit compact for easy storage while still allowing full operation of both the source and meter.

IDEAL® FiberMASTER™ Power Meter, Digital Multi-Mode/Single Mode, InGaAs Detector, -60 to 3 dBm Measurement Range, +/- 5% Accuracy, 0.01 dB Display Resolution, (3) AAA Alkaline Battery, 360 hr Operating Time, -25 to 70 deg C Storage Temperature, -10 to 60 deg C Operating Temperature, -6 to -7 dBm Typical Output Power, 0.05 db after 15 min, 0.1 dB over 8 hr Stability, 40 hr Operating Time, For Use With: Fiber Optic Cable

Standards

ARRA Compliant | Buy American Act Compliant | RoHS Compliant | CE Marked

Features

Four wavelength power meter for multimode and single mode testing and 850 NM multimode LED light source
Calibration function stores reference power level for quick dB loss measurements eliminating the need to manually calculate loss
Saves time and money
Power meter features 2.5 mm universal and FC adapters, light source Includes ST®, SC and FC adapters to test the most common interfaces
Ready for FTTx: 1490 NM measurement wavelength for use with nearly all single mode fiber to the home applications
Designed for the field
Unique docking light source and easy three-button operation make this the perfect fiber tester for use in the field

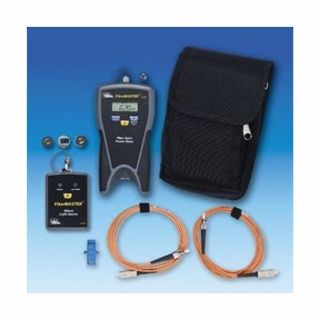

Includes

(1) 33-929 Light Source, (1) 850, 1300, 1310, 1550 nm Laser Light Sources with ST, SC and FC Adapters, (1) 33-927 Power Meter, (4) Wavelength with Universal 2.5 mm and Fixed FC Adapter, (1) 2x SC-SC 50 um Multi-mode Cable, (1) SC Calibration Coupler, (1) Carrying Case and (1) English, Spanish, German, French, Portuguese, Italian, Chinese User Manual

Specifications

Country of Origin:	CN
Specifications:	InGaAs Detector, -60 to 3 dBm Measurement Range, +/- 5% Accuracy, 0.01 dB Display Resolution, (3) AAA Alkaline Battery, 360 hr Operating Time, -25 to 70 deg C Storage Temperature, -10 to 60 deg C Operating Temperature, -6 to -7 dBm Typical Output Power, 0.05 db after 15 min, 0.1 dB over 8 hr Stability, 40 hr Operating Time
Suitable For Use With:	Fiber Optic Cable
