33-931 IDE

Name: 33-931 IDE
Brand: Ideal Industries
SKU: 33-931 IDE
Availability: OutOfStock

IDEAL® FiberMASTER™ 33-931 Fiber Optic Test Kit, For Use With Fiber Optic Cable

Manufacturer: Ideal Industries

Manufacturer part number: 33-931

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

IDEAL®

Alternate Supplier #

Grainger - 6KJU4

Description

The IDEAL® FiberMASTER™ fiber optic testing kit allows the user to measure absolute power and calculate the loss of fiber optic links at several wavelengths. Absolute power measurements are helpful when troubleshooting equipment that may not be operating properly. The dB calibration feature allows the operator to set a reference level to the light source and directly read the loss of fiber optic links without needing to manually calculate the values. The unique form factor allows the light source to be docked neatly within the power meter. This makes the kit compact for easy storage while still allowing full operation of both the source and meter.

IDEAL® FiberMASTER™ Fiber Optic Test Kit, +/-5% Accuracy, 0.01 Display Resolution, -10 to 60 deg Operating Temperature, For Use With: Fiber Optic Cable

Standards

ARRA Compliant | Buy American Act Compliant | RoHS Compliant | CE Marked

Features

Fiber optic power meter and light source
Four wavelength power meter for multimode and single mode testing and 850 NM multimode LED light source
Calibration function stores reference power level for quick dB loss measurements eliminating the need to manually calculate loss
Saves time and money
Power meter features 2.5 mm universal and FC adapters, light source Includes ST®, SC and FC adapters to test the most common interfaces
Ready for FTTx: 1490 NM measurement wavelength for use with nearly all single mode fiber to the home applications
Designed for the field
Unique docking light source and easy three-button operation make this the perfect fiber tester for use in the field
Measure fiber optic power in milliwatt (mW) and decibel milliwatt (dBm) to test and troubleshoot active LANs
Quickly measure cabling loss with the automatic calibration feature that stores reference power from any light source for quick dB loss calculations
Power meter with four wavelength MM/SM light source

Includes

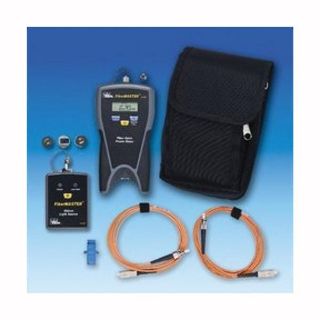

(1) 33-929 Light Source, (1) 850, 1300, 1310, 1550 nm Laser Light Sources with ST, SC and FC Adapters, (1) 33-927 Power Meter, (4) Wavelength with Universal 2.5 mm and Fixed FC Adapter, (1) 2x SC-SC 50 um Multi-mode Cable, (1) SC Calibration Coupler, (1) Carrying Case and (1) English, Spanish, German, French, Portuguese, Italian, Chinese User Manual

Specifications

Country of Origin:	CN
Specifications:	+/-5% Accuracy, 0.01 Display Resolution, -10 to 60 deg Operating Temperature
Suitable For Use With:	Fiber Optic Cable
