Picture of 33-990-FA04 IDE
Actual Product May Vary From Image

33-990-FA04 IDE

IDEAL® FiberTEK® FDX 33-990-FA04 Combination Multimode/Single Mode Kit, 850/1300/1310/1550 nm, SC/FC/ST Interface
Manufacturer: Ideal Industries
Manufacturer part number: 33-990-FA04
Availability: Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

IDEAL®

Description

IDEAL® FiberTEK® FDX Combination Multimode/Single Mode Kit, 850/1300/1310/1550 nm Wavelength, Combination Multi-Mode/Singlemode Mode, SC/FC/ST Interface Connector

Application

For LanTEK® II series cable certifier

Standards

CE Marked | RoHS Compliant

Features

  • Fiber optic certification to TSB tier 1 standards using the LanTEK® II cable certifier platform
  • Full duplex capability - four insertion loss tests and length measurement in one step
  • Real time power meter to aid in troubleshooting active equipment
  • FiberTEK® FDX modules incorporate dual light sources and a wide range power meter to allow loss testing of fiber links as well as to measure light levels emitted from active network equipment
  • Field changeable adapters - SC, ST, FC
  • Multimode (850/1300nm) kits are available with either LED light sources for 10/100Mbps certification or VCSEL/laser sources for 1Gbps, 1310/1550nm kits are also available for single mode testing
  • For standard multi-mode fiber, 850 nm LED, 1300 nm LED/single mode fiber, 1310 nm FP laser, 1550 nm FP laser
  • User changeable adapter (SC, FC, ST) 2.5mm ferrule connector
  • +/- 0.5 dB from 0 dBm to -40 dBm, 850 to 1550 nm, system dynamic range 40 dB power meter accuracy
  • +/-3%, maximum distance measurement 3000 m length accuracy
  • 0.1 dB power or attenuation/0.1 m length display resolution

Includes

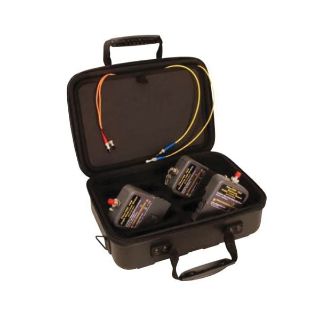

(2) FiberTEK® FDX Modules, Semi-Rigid Carrying Case, SC, FC, ST Adapters for Modules (2 Each), SC-SC Patch Cords (MM Kits: 3 x 62.5 um, 3 x 50 um, SM Kits: 3 x 9 um SMF) Compliant to ISO/IEC 14763-3 Standard, Quick Reference Guide and Electronic Operation Manual

Specifications

Connector:SC/FC/ST Interface
Country of Origin:UA
Mode:Combination Multi-Mode/Singlemode
Wavelength:850/1300/1310/1550 nm
