33-993-FA04 IDE

Name: 33-993-FA04 IDE
Brand: Ideal Industries
SKU: 33-993-FA04 IDE
Availability: OutOfStock

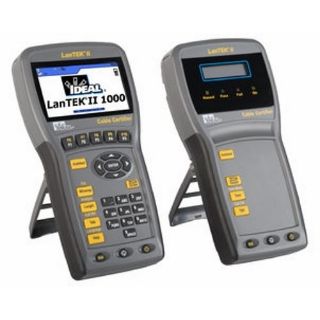

IDEAL® LanTEK® II 33-993-FA04 Cable Certifier Test Set, 100 VAC, 25 mA, TFT Display

Manufacturer: Ideal Industries

Manufacturer part number: 33-993-FA04

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

IDEAL®

Description

The IDEAL Networks 33-993 LanTEK II 1000 w/FiberTEK FDX Multimode Kit offers high speed certification with a full 1 GHZ of certification bandwidth - 1000 MHz standard to support CATV, Ethernet and voice in the same cable. Universal adapter system allows use of off-the-shelf patch cords. With 7x the storage capacity of competitors, the IDEAL Networks LanTek II 1000 can store up to 1700 CAT6 results with graphs. The 33-990-FA04 FiberTEK FDX option is a multimode kit with an LED light source for OM1 to OM4 multimode fibers. FiberTEK FDX modules provide the world's only dual wavelength, bidirectional fiber certification available. That's more than 3x faster than existing testers. The FiberTEK FDX option allows standards compliant fiber optic certification capability to be added to any LanTEK II Series Certifier; it provides fast bi-directional, dual wavelength optical loss (dB) and length measurements meeting Teir 1 certification requirements.

IDEAL® LanTEK® II Cable Certifier Test Set, 100 VAC, 25 mA, TFT, Memory: 64 GB, Lithium-Ion Battery, 10 in Length, 5 in Width, 2.1 in D

Features

1000 MHz of frequency sweep to certify CAT5e/6/6A/7A cabling
Complies with TIA-568 performance standards
Accuracy level III
High speed testing saves time and money
Patented testing method eliminates expensive permanent link adapters, and tests with patch cords for most installations
Extraordinary fast fiber testing with FiberTEK FDX, the first dual wavelength, bidirectional fiber certification tool
4.3 in wide ultra-bright screen display with white LED backlighting provides easy viewing of high frequency data plots
Smart lithium-ion battery technology with 18 hr battery life and self calibrating "fuel gauge" for accurate capacity readings
850/1300nm multimode kit with LED light
Optional, space age FiberTEK FDX provides the fastest and only dual wavelength, bidirectional fiber certification on the market
Innovative FiberTEK FDX modules allow complete testing of each fiber strand without swapping transmit- and receive-ports, to get full dual wavelength, bidirectional results
Field changeable SC, ST and FC adapters eliminate need for hybrid launch cables
Full-duplex optics simplify certification and offer speedy results
Non-volatile flash, storage capacity for 1700 TIA-Cat 6 tests with graphs, tests can be copied to USB flash drive, up to 64GB
0 to 50 deg C, non-condensing operating temperature
1 to 1000 MHz frequency range
Adapter port 168 pin ultra low crosstalk, mini-USB device port, USB host port (display handset only), four pin serial port (service use only), 1/8 in talkset jack, power/charging jack
Integrated into display and remote handset, compatible with standard analog inductive probes, selectable tone (high/low/warble) 500/600 Hz, selectable pin output
Baseline certified by ETL to meet IEC 61935 level III/IIIe/IV, channel/permanent link, TIA 568-B.2-2 and IEC 61935 level III/IIIe/IV accuracy
0.1 dB, length 0.1 m/0.1 f power/attenuation

Includes

(1) 33-993 LanTEK II 1000 MHz TIA/ISO Cat5E/6/6A/7A Copper Certifier and (1) 33-990-FA01 FiberTEK FDX MM Kit

Specifications

Amperage Rating:	25 mA
Battery Type:	Lithium-Ion
Depth:	2.1 in
Display Type:	TFT
Length:	10 in
Memory:	64 GB
Voltage Rating:	100 VAC
Width:	5 in
