.3318EP3ESS56CFL WEG

Washdown Duty; Shark - Stainless Steel; TEFC – Three-Phase – C-Face Footless
Manufacturer: WEG
Manufacturer part number: .3318EP3ESS56CFL
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
Show More Locations
$430.00 / EA

Product Details

Brand Name

WEG

Type

TEFC – Three-Phase – C-Face Footless

Description

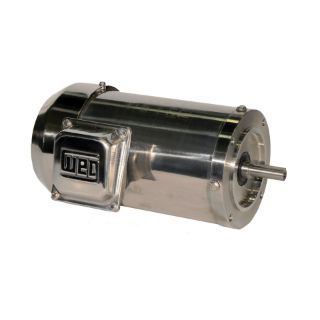

Stainless Steel Washdown Motor. For use in food processing, pharmaceutical and other applications requiring extreme cleanliness. Motor has Class F epoxy insulation and meets IP55.

Note

TENV - Totally Enclosed Non Ventilated; Round Body - Drip Cover NOT Included; Stainless Steel Body

Specifications

"C" Dimension:11.250
Efficiency:79.8
Frame:56C
HP:0.33
Kw:0.25
Notes:TENV - Totally Enclosed Non Ventilated; Round Body - Drip Cover NOT Included; Stainless Steel Body
Rated Current:0.53
Rated Voltage:230/460
RPM:1800
Service Factor:1.15
