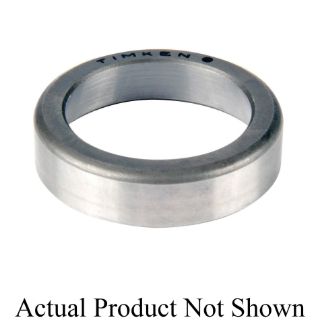

Actual Product May Vary From Image

333197 3 TKN

Name: 333197 3 TKN
Brand: Timken
SKU: 333197 3 TKN
Availability: OutOfStock

Tapered Roller Bearing Single Cup

Manufacturer: Timken

Manufacturer part number: 333197-30000

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Timken

Description

Timken®is the recognized global leader in tapered roller bearings. It has the most extensive offering in the market. With capacity to manage both radial and axial loads, high-performance Timken® tapered roller bearing assemblies are engineered to provide the greatest durability in the most compact space.

TRB Single Cup | Imperial | 501.7 mm 19.8 in OD | 69.9 mm 2.8 in Width

Features

Internal geometry provides increased stiffness and exceptional runout
Radial runout high point marked for accurate installation
Timken® outer (cup) and inner (cone) rings should be used in combination

Specifications

Assembly Components:	Single Cup
Bearing Material:	Steel
Bearing Type:	Single Cup
Component (I/R; O/R assembly):	Outer Ring
Load Rating UOM:	LB
Material - Rolling Elements:	Steel
Outer Diameter (in):	19.75
Outer Diameter (mm):	501.65
Outer Diameter Type:	Straight OD
Outer Race Width (in):	2.75
Outer Race Width (mm):	69.85
Overall Width (in):	2.75
Overall Width (mm):	69.85
Precision class:	Class 3 (Precision)
Raceway Style:	Tapered Roller Bearing
Row Type:	Single
