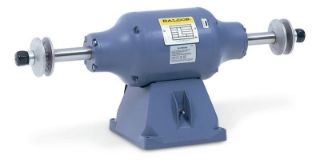

Picture of 334B BLD
Actual Product May Vary From Image

334B BLD

.75HP,1500/1800RPM,3PH,50/60HZ,3524M
Manufacturer: Baldor Reliance
Manufacturer part number: 334B
Availability: Ships in 1-3 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$1,379.72

Product Details

Brand Name

Baldor-Reliance

Type

Grinders, Buffers, Lathes

Application

BUFFER

Standards

UR; CSA

Features

.75HP,1500/1800RPM,3PH,50/60HZ,3524M

Specifications

Base:Rigid
Country of Origin:US
Duty:CONT
Enclosure:TENV
Frequency Rating:50 Hz; 60 Hz
Full Load Current:1.4/.7
Horsepower:0.750 hp
Insulation Class:F
Mounting:F1
Number of Wires:9 @ 18 AWG
Phase:Three Phase
Service Factor:1
Speed Rating:1,800 rpm; 1,500 rpm
Voltage Rating:460 V; 230 V; 208 V

Resources

Tech DrawingSpec SheetWarranty
