3404 RAC

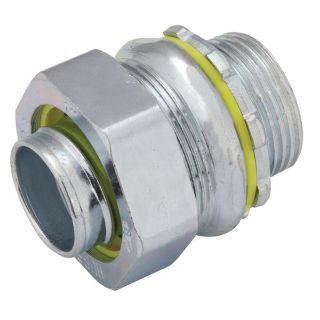

RACO® 3404 Non-Insulated Straight Conduit Connector, 1 in Trade, Malleable Iron/Steel, Electro-Plated Zinc
Manufacturer: Raco Industries
Manufacturer part number: 3404
Availability: Expected Leadtime 91 days
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
15 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$16.55

Product Details

Brand Name

RACO®

Type

Non-Insulated Straight

Alternate Supplier #

Grainger - 6X772

Description

RACO® Conduit Connector, Non-Insulated Straight, 1 in, For Use With: Liquid Tight Flexible Metallic and Type B Non-Metallic Conduit/Cord, Malleable Iron/Steel, Silver, Electro-Plated Zinc, 2-3/16 in L x 1-15/16 in W

Application

Used in outdoor or indoor locations and positively bond the conduit to a box or enclosure and hazardous locations

Standards

CSA Certified | UL Listed | Class 1 | Div 2 | Class 2 | Div 1 | 2 | Class 3 | Div 1 | 2

Features

  • Patented split gland-ring is designed to slip onto the conduit quickly and to grip the jacket of the conduit, speeding installation, assuring a perfect seal and preventing pullouts
  • All components are reusable RACO® liquidtight connectors may be easily disassembled and reused after years of service
  • Sealing washer provides a liquidtight seal when terminating the connector in a threadless opening
  • Heavy-duty locknut with every RACO® liquidtight connector assures continuity of ground
  • 3/8 to 1 in steel bodies, 1-1/4to 4 in malleable iron bodies, 3/8 to 1 in steel nuts, 1-1/4 to 4 in malleable iron nuts
  • 1 in to 11-1/2 NPT thread specification
  • 19/32 in L thread
  • Patented split gland-ring assures perfect seal and quick installation, reusable components

Includes

Sealing Washer and Locknut

Specifications

Color:Silver
Country of Origin:CN
Dimensions:2-3/16 in L x 1-15/16 in W
Finish:Electro-Plated Zinc
Material:Malleable Iron/Steel
Suitable For Use With:Liquid Tight Flexible Metallic and Type B Non-Metallic Conduit/Cord
Trade Size:1 in
