342858A LIT

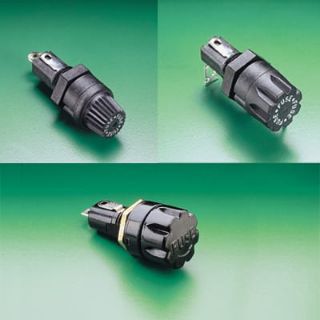

Littelfuse® 342858A 342 Traditional Fuse Holder, 250 VAC/VDC, 20 A, 1 Poles
Manufacturer: Littelfuse
Manufacturer part number: 342858A
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$18.40

Product Details

Brand Name

Littelfuse®

Description

Littelfuse® Fuse Holder, Series: 342 Traditional, 250 VAC/VDC, 20 A, 1 Pole, 1/4 in Quick Connect/Straight Connection, Panel Mounting, 32 mm Fuse Length, 6.3 mm Diameter Fuse, -40 to 85 deg C, For Use With: 3AG/AB Series Fuse, Thermoplastic, Black

Standards

RoHS Compliant | UL E14721 | CSA 7316 | PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer

Features

  • Copper/copper alloy and tin plated except 1/4 in Quick-Connect terminals are nickel plated
  • 2400 V minimum dielectric strength
  • Withstands 15 lb mounting torque
  • Neoprene washer provide drip-proof protection on the front side of the panel
  • Knurled knob

Includes

Mounting Nut, Neoprene Washer

Specifications

Amperage Rating:20 A
Color:Black
Connection Type:1/4 in Quick Connect/Straight
Country of Origin:CA
Fuse Diameter:6.3 mm
Fuse Length:32 mm
Material:Thermoplastic
Mounting Type:Panel
Number of Poles:1
Series:342 Traditional
Suitable For Use With:3AG/AB Series Fuse
Temperature Rating:-40 to 85 deg C
Voltage Rating:250 VAC/VDC
