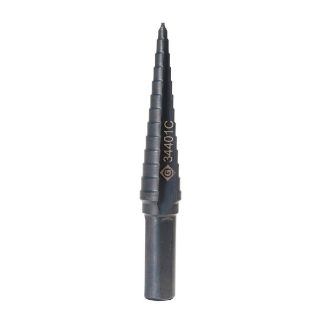

Actual Product May Vary From Image

34401C GRL

Name: 34401C GRL
Brand: Greenlee
SKU: 34401C GRL
Availability: OutOfStock

Greenlee® Kwik Stepper® 34401C Step Bit, 1/8 in Dia Min Hole, 1/2 in Dia Max Hole, 13 Steps, 10 ga Stainless Steel, 13 Hole Sizes, 3/8 in Shank

Manufacturer: Greenlee

Manufacturer part number: 34401C

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Greenlee®

Alternate Supplier #

Grainger - 45KF32
MSC - 98205610

Description

Greenlee® Kwik Stepper® Step Bit, Imperial, #1 Letter/Wire, 1/8 in Diameter Minimum Hole, 1/2 in Diameter Maximum Hole, 3.08 in Overall Length, 13 Steps, 1/8 in Step Depth, 13 Hole, 2 Flutes, 1/8 in, 5/32 in, 3/16 in, 7/32 in, 1/4 in, 9/32 in, 5/16 in, 11/32 in, 3/8 in, 13/32 in, 7/16 in, 15/32 in, 1/2 in, 3/8 in Shank, Hex Shank, Split Point, Cobalt HSS Cutting Edge, 10 ga Stainless Steel, Steam Oxide, Applicable Materials: Aluminum, Brass, Copper, Fiberglass, Mild Steel, Plastic, Sheet Metal, Laminates and Wood

Standards

ARRA Compliant

Features

Engineered with cobalt HSS material for maximum life in stainless steel
Dual flute design cuts fast
Split point tip eliminates walking and penetrates quickly with less force
Steam oxide finish runs cooler and extends the life of the bit
3/8 in minimum chuck
Cobalt HSS step bit for up to 10 ga stainless steel

Specifications

Applicable Materials:	Aluminum, Brass, Copper, Fiberglass, Mild Steel, Plastic, Sheet Metal, Laminates and Wood
Country of Origin:	US
Cutting Edge Material:	Cobalt HSS
Drill Diameter Measurement System:	Imperial
Finish:	Steam Oxide
Hole Sizes Cut:	1/8 in, 5/32 in, 3/16 in, 7/32 in, 1/4 in, 9/32 in, 5/16 in, 11/32 in, 3/8 in, 13/32 in, 7/16 in, 15/32 in, 1/2 in
Letter/Wire Size:	#1
Material:	10 ga Stainless Steel
Maximum Hole Diameter:	1/2 in
Minimum Hole Diameter:	1/8 in
Number of Flutes:	2
Number of Hole Sizes:	13
Number of Steps:	13
Overall Length:	3.08 in
Point Type:	Split
Shank Size:	3/8 in
Shank Type:	Hex
Step Depth:	1/8 in
