350-012-30 FSG

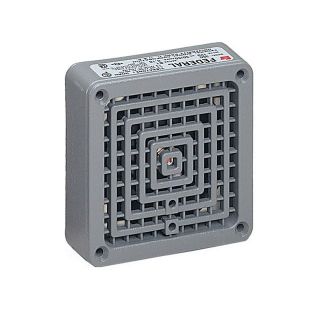

Federal Signal Vibratone® 350-012-30 Compact Heavy-Duty Electronic Horn, 12 VAC, 0.9 A, 104/94 dB Sound, Indoor/Outdoor, Surface/Panel Mount, Gray, ARRA Compliant|BAA Compliant|CSA Certified|cUL Listed|FM Approved|UL Listed
Manufacturer: Federal Signal
Manufacturer part number: 350-012-30
Availability: Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$187.24

Product Details

Brand Name

Federal Signal

Type

Compact Heavy-Duty

Description

Model 350 Vibratone® horn produces a loud tone by the electro-mechanical vibration of a diaphragm. Its compact size, loud output and heavy duty construction makes the 350 ideal for industrial and institutional signaling applications. It's popularly used for general alarming, start and dismissal noticing, coded paging and process control in noisy areas. The 350 is enclosed in a zinc die cast housing and sealed with gray powder coat paint with a stainless steel diaphragm.
Federal Signal Vibratone® Electronic Horn, Compact Heavy-Duty, Series: 350, 12 VAC, 0.9 A, 50/60 Hz Frequency, 104/94 dB Sound Level, Indoor/Outdoor Indoor/Outdoor, Specifications Met: ARRA Compliant|BAA Compliant|CSA Certified|cUL Listed|FM Approved|UL Listed, Surface/Panel Mounting, -65 to 150 deg F Operating, Die Cast Zinc, Gray, 4 in W x 2-1/2 in D x 4 in H Dimensions

Application

Industrial and Institutional Applications, Indoor/Outdoor Applications

Standards

UL/cUL Listed | CSA Certified | FM Approved

Features

  • Coded or sustained tones
  • 100 dBA at 10 ft/110 dBA at 1 m sound level
  • Type 4X and type 12 enclosure

Specifications

Amperage Rating:0.9 A
Color:Gray
Country of Origin:US
Dimensions:4 in W x 2-1/2 in D x 4 in H
Frequency Rating:50/60 Hz
Indoor/Outdoor:Indoor/Outdoor
Material:Die Cast Zinc
Mounting Type:Surface/Panel
Operating Temperature:-65 to 150 deg F
Series:350
Sound Level:104/94 dB
Specifications Met:ARRA Compliant|BAA Compliant|CSA Certified|cUL Listed|FM Approved|UL Listed
Voltage Rating:12 VAC
