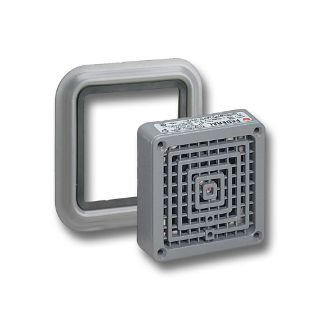

Actual Product May Vary From Image

350TR-024 FSG

Name: 350TR-024 FSG
Brand: Federal Signal
SKU: 350TR-024 FSG
Price: 193.54 USD
Availability: OutOfStock

Manufacturer: Federal Signal

Manufacturer part number: 350TR-024

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$193.54

Qty:

Product Details

Brand Name

Federal Signal

Type

Compact Heavy-Duty

Description

Model 350TR Vibratone® horn produces a loud tone by the electro-mechanical vibration of a diaphragm. Its compact size, loud output and heavy duty construction makes the 350TR ideal for industrial and institutional signaling applications. It's popularly used for general alarming, start and dismissal noticing, coded paging and process control in noisy areas. The 350TR offers the benefits of quick and simple surface mount installation as each horn is supplied with a gasketed trim ring. The 350TR is enclosed in a zinc die cast housing and sealed with gray powder-coat paint with a stainless-steel diaphragm.

Federal Signal Vibratone® Electronic Horn, Compact Heavy-Duty, Series: 350TR, 24 VAC, 0.9 A, 50/60 Hz, 110/100 dB, Indoor/Outdoor: Indoor/Outdoor, Specifications Met: ARRA Compliant|BAA Compliant|CSA Certified|cUL Listed|FM Approved|UL Listed, Surface Mount, -65 to 150 deg F Operating, Die Cast Zinc, Gray, 5.6 in W x 2.5 in D x 5.6 in H

Application

General Alarm, Start and Dismissal, Coded Paging, Process Control Signaling in Areas of High Ambient Noise Levels, Industrial, Institutional Signaling and Indoor/Outdoor Applications

Features

Solid state circuitry
Built-in gain control, adjustable between 64 dBA to 88 dBA at 10 ft
SelecTone® speaker amplifiers are used individually or as part of a plant wide emergency notification system
For plant wide signaling, a connector kit is installed into each SelecTone® speaker amplifier and wired to a central controller
SelecTone® command units and commcenter digital message centers broadcast tones, voice messages, melodies and live public address to an unlimited number of SelecTone® speaker amplifiers
Type 3R enclosure when used with the WB back box

Specifications

Amperage Rating:	0.9 A
Color:	Gray
Country of Origin:	US
Dimensions:	5.6 in W x 2.5 in D x 5.6 in H
Frequency Rating:	50/60 Hz
Indoor/Outdoor:	Indoor/Outdoor
Material:	Die Cast Zinc
Mounting Type:	Surface
Operating Temperature:	-65 to 150 deg F
Series:	350TR
Sound Level:	110/100 dB
Specifications Met:	ARRA Compliant\|BAA Compliant\|CSA Certified\|cUL Listed\|FM Approved\|UL Listed
Voltage Rating:	24 VAC
