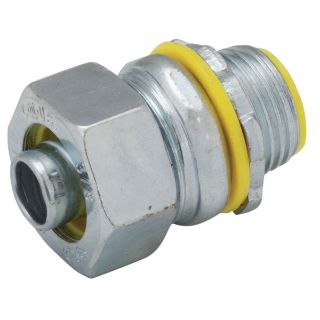

Picture of 3512RAC RAC
Actual Product May Vary From Image

3512RAC RAC

RACO® 3512RAC Insulated Straight Conduit Connector, 1/2 in Trade, Malleable Iron/Steel, Electro-Plated Zinc
Manufacturer: Raco Industries
Manufacturer part number: 3512RAC
Availability: Expected Leadtime 91 days
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
81 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$8.22

Product Details

Brand Name

RACO®

Type

Insulated Straight

Alternate Supplier #

Grainger - 3LL05

Description

RACO® Conduit Connector, Insulated Straight, 1/2 in, For Use With: Liquid Tight Flexible Metallic and Type B Non-Metallic Conduit/Cord, Malleable Iron/Steel, Silver, Electro-Plated Zinc

Application

For electrical, indoor and outdoor locations on flexible metallic liquid tight conduit and Type B flexible non-metallic liquid tight conduit

Standards

UL 514B | UL File No. E195969 | CSA C22.2 No. 18 | Class I Div 2 | Class II Div 1, 2 | Class III Div 1, 2

Features

  • All steel/iron components are zinc electro-plated for added corrosion protection
  • Patented split gland ring is designed to slip onto the conduit quickly and to grip the jacket of the conduit, speeding installation, assuring a perfect seal and preventing pullouts
  • All components are reusable RACO® liquidtight connectors may be easily disassembled and reused after years of service
  • Sealing washer (included) provides a liquidtight seal when terminating the connector in a threadless opening
  • Heavy duty locknut included with every RACO® liquidtight connector assures continuity of ground
  • UPC bar coded fittings are individually poly bagged with a preprinted UPC-A bar code and packaged in pre-scored tear top cartons for an attractive presentation

Includes

Sealing Washer and Locknut

Specifications

Color:Silver
Country of Origin:CN
Dimensions:1.313 in L x 1.313 in W x 1.813 in H
Finish:Electro-Plated Zinc
Material:Malleable Iron/Steel
Suitable For Use With:Flexible Metallic, Type B Non-Metallic Conduit
Trade Size:1/2 in
