3525 3.1/2 GAT

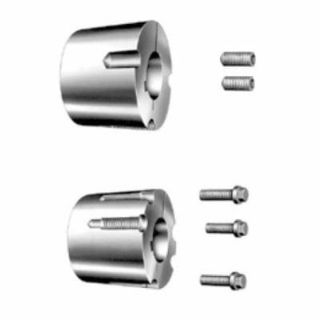

Picture of 3525 3.1/2 GAT
Actual Product May Vary From Image

Product Details

Manufacturer:
Gates Corporation
Manufacturer part number:
3525 3.1/2
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$181.74 / EA

Description

Brand Name

Gates®

Type

Finished Bore

Description

Taper-Lock® bushings are flangeless for clean, compact application. They are engineered with an 8° taper and a flush-mounted design with no protruding parts providing secure locking and elimination of wobble.
Gates® Taper Lock Bushing, Finished Bore, 3-1/2 in Bore Dia, 5 in Barrel Dia, 7 in Hub Dia, 8 deg Taper, 4.83 in Bolt Circle, 3 Bolt Holes, 1/2-13 x 1-1/2 in Screw, 44800 in-lb, For Use With: Taper Lock Style Sheaves, Sprockets and Pulleys, 2-1/2 in Overall Length, 7/8 x 3/16 in Keyway, Cast Iron

Features

  • Size 3525 bushing
  • Bushings are made to precise tolerances

Specifications

Barrel Diameter:5 in
Bolt Circle Diameter:4.83 in
Bore Diameter:3-1/2 in
Country of Origin:US
Hub Diameter:7 in
Keyway Size:7/8 x 3/16 in
Material:Cast Iron
Number of Bolt Holes:3
Overall Length:2-1/2 in
Screw Size:1/2-13 x 1-1/2 in
Suitable For Use With:Taper Lock Style Sheaves, Sprockets and Pulleys
Taper:8 deg
Torque Rating:44800 in-lb

Products Specifications

Brand Name
Gates

Customers who bought this item also bought

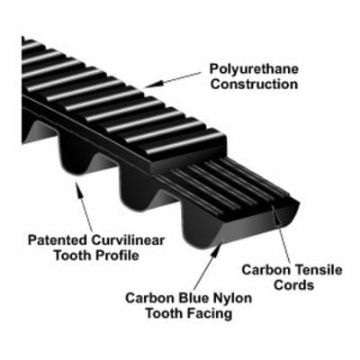

Picture of 14MGT-3500-68 GAT

14MGT-3500-68 GAT

MFG: Gates Corporation
MFG#:14MGT-3500-68
Info:Gates® Poly Chain® GT® Carbon™ 14MGT-3500-68 Synchronous Belt, 68 mm W, 3500 mm OAL, 14 mm Pitch, 250 Teeth, Polyurethane
$ -.--
Picture of 14MX-168S-68 GAT

14MX-168S-68 GAT

MFG: Gates Corporation
MFG#:14MX-168S-68
Info:Gates® Poly Chain® GT®2 14MX-168S-68 Synchronous Sprocket, 1-15/16 to 4-15/16 in Taper-Lock® Bore, 29.37 in OD, 168 Grooves, 29.475 in Dia Pitch, 3.33 in W Face
$ -.--

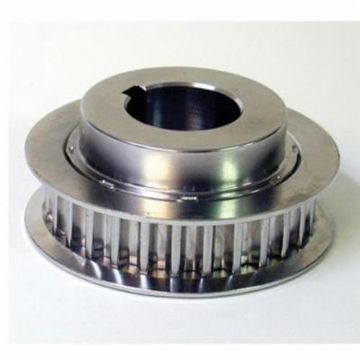

Picture of 14MX-48S-68 GAT
