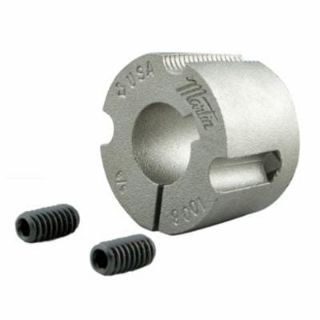

Actual Product May Vary From Image

3535 2 3/4 MSG

Name: 3535 2 3/4 MSG
Brand: Martin Sprocket & Gear
SKU: 3535 2 3/4 MSG
Price: 121.90 USD
Availability: OutOfStock

Martin 3535 2 3/4 Standard Taper Lock Bushing, 2-3/4 in Dia Bore, 5 in Dia Barrel, 3-1/2 in OAL, Cast Iron

Manufacturer: Martin Sprocket & Gear

Manufacturer part number: 3535 2 3/4

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$121.90

Qty:

Product Details

Brand Name

Martin

Type

Standard

Description

Martin Taper Lock Bushing, Standard, 2-3/4 in Bore Dia, 5 in Barrel Dia, 7 to 7-3/4 in Hub Dia, 8 deg Taper, 4.83 in Bolt Circle, 3 Bolt Holes, 1/2 x 1-1/2 in Screw, 44800 in-lb, 3-1/2 in Overall Length, 5/8 x 5/16 in Keyway, Cast Iron

Standards

ANSI B15.1

Features

Size 3535 bushing
TB Bushings are designed for flush mounting and do not have a flange

Specifications

Barrel Diameter:	5 in
Bolt Circle Diameter:	4.83 in
Bore Diameter:	2-3/4 in
Country of Origin:	US
Hub Diameter:	7 to 7-3/4 in
Keyway Size:	5/8 x 5/16 in
Material:	Cast Iron
Number of Bolt Holes:	3
Overall Length:	3-1/2 in
Screw Size:	1/2 x 1-1/2 in
Taper:	8 deg
Torque Rating:	44800 in-lb
