Actual Product May Vary From Image

354602-GY LIT

Name: 354602-GY LIT
Brand: Littelfuse
SKU: 354602-GY LIT
Availability: OutOfStock

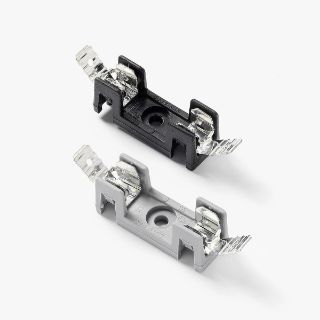

Littelfuse® OMNI-BLOK® 354602-GY Molded Base Non-Indicating Fuse Block, 600 VAC/VDC, 20 A, 2 Poles

Manufacturer: Littelfuse

Manufacturer part number: 354602-GY

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Littelfuse®

Type

Molded Base Non-Indicating

Description

A low profile fuse block featuring individual barriers which reinforce the fuse clips while providing greater protection against clip damage and electrical shock. The unique design permits self-alignment of clips to fuse cap. This, plus a one-piece clip/terminal assures low contact resistance. Higher current ratings have been attained using spring brass clips. With the exception of the two-pole unit, multiple pole units may be broken apart to obtain desired number of poles.

Littelfuse® OMNI-BLOK® Fuse Block, Molded Base Non-Indicating, Series: 354, 600 VAC/VDC, 20 A, 2 Poles, NEMA Style Quick Clip, Chassis Mount, 1-1/4 in Fuse Length, 1/4 in Fuse Dia, -40 to 85 deg C, For Use With: 3AB/3AG Fuse, Thermoplastic, Gray

Application

Circuit Board Applications

Standards

RoHS Compliant | UL File No. E14721 Recognized | CSA File No.7316 | UL 94-V-0 Flammability Rating

Specifications

Amperage Rating:	20 A
Color:	Gray
Connection Type:	NEMA Style Quick Clip
Country of Origin:	CA
Fuse Diameter:	1/4 in
Fuse Length:	1-1/4 in
Material:	Thermoplastic
Mounting Type:	Chassis
Number of Poles:	2
Series:	354
Suitable For Use With:	3AB/3AG Fuse
Temperature Rating:	-40 to 85 deg C
Voltage Rating:	600 VAC/VDC
